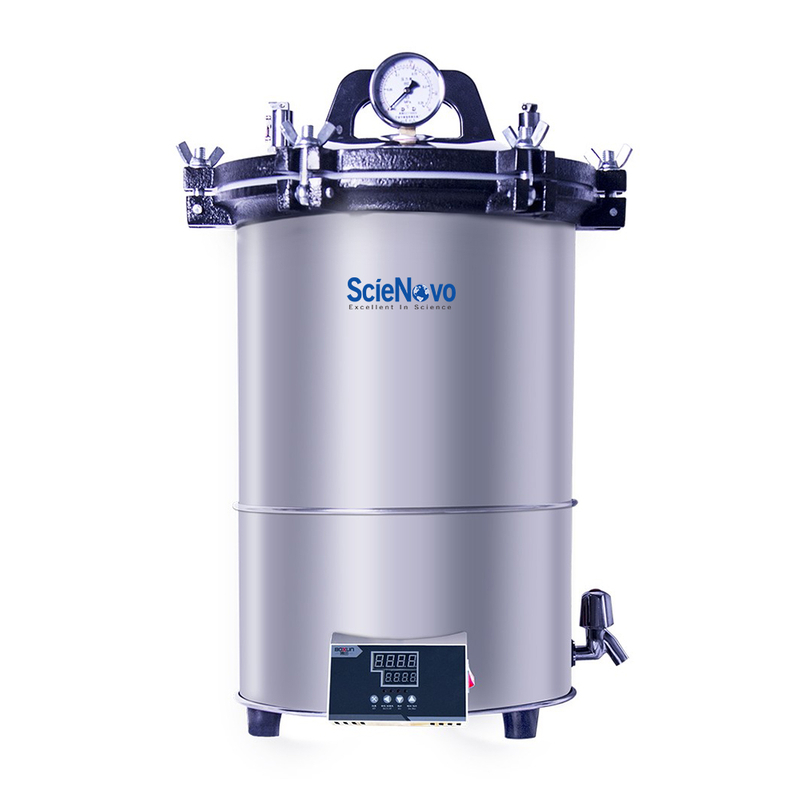

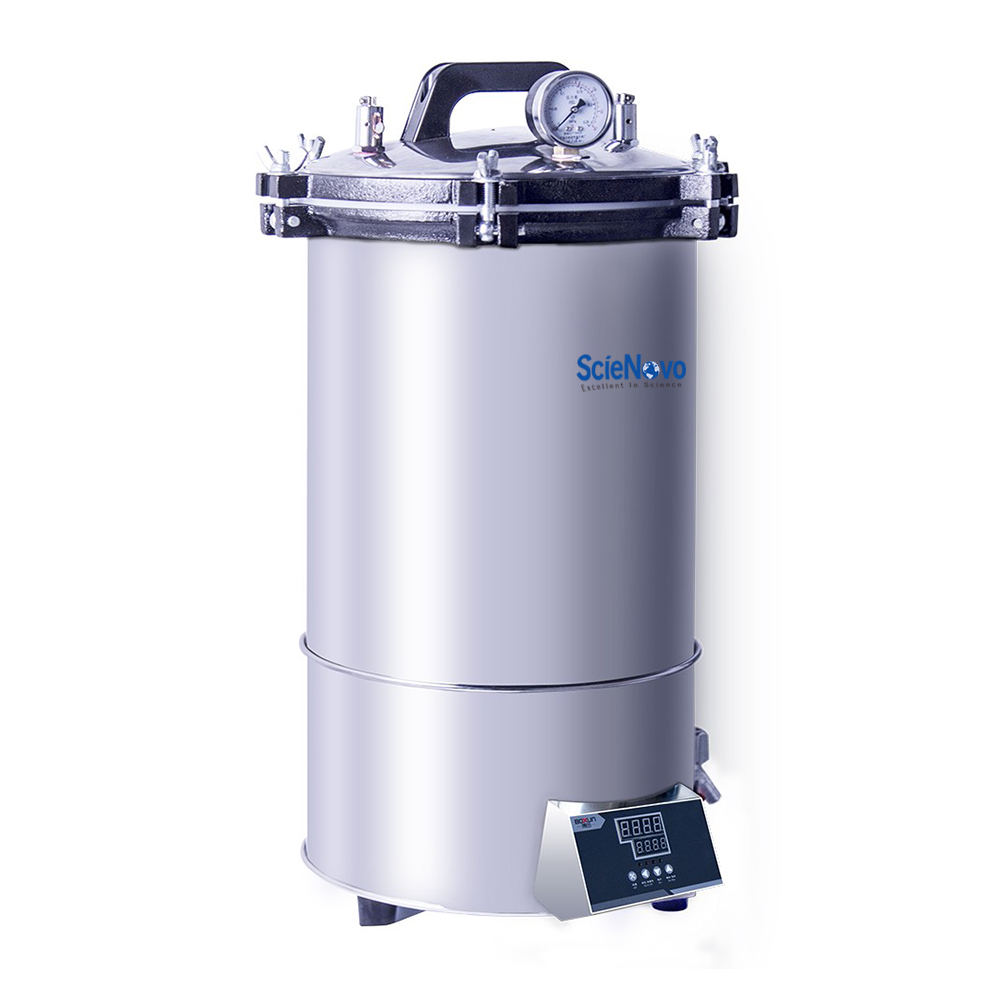

YXQ-LS-18SII；YXQ-LS-24SII
scienovo
ISO9001/CE
2 Years
OEM Service
| Quantity: | |
|---|---|
Product Features |
Microcomputer automatic control;
Highlight Nixie tube display ;
Electric heating mode ;
Automatic control of sterilization process ;
SUS304 material ;
Water level safety float ;
Self expanding sealing ring are used for the inner tank.
Technical Parameter |
Model： | YXQ-LS-18SII | YXQ-LS-24SII |
Volume [L]： | 18L | 24L |
Power [kW]： | 2 KW | |
Power Supply [V, Hz]： | 220±10%, 50±2% | |
Max. Working / Design Temp. [°C]： | 126°C / 128°C | |
Max. Working / Design Pressure [MPa]： | 0.142MPa / 0.165MPa | |
Temperature resolution[℃]： | 0.1°C | |
Timer Range [min]： | 0~999min | |
Internal Dimensions [mm]： | Ø300×330mm | Ø300×430mm |
Housing Dimensions [mm]： | Ø325×555mm | Ø325×660mm |
Net weight [kg]： | 14 kg | 16 kg |
Gross weight [kg]： | 16 kg | 18 kg |
Package size [mm]： | 420*450*560 mm | 420*450*680mm |
