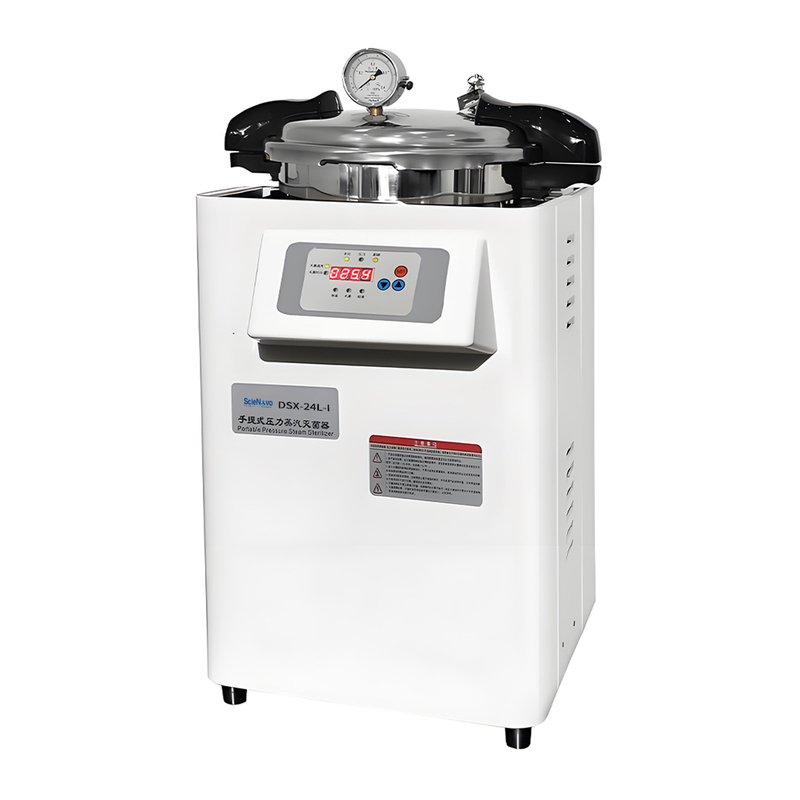

SN-DSX-24L-I
scienovo
ISO9001/CE
2 Years
OEM Service
| Quantity: | |
|---|---|
| Product Features |
Intelligent microcomputer control system:
Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
Interlock device:
The control system can real time supervision the sterilizer chambers temperature and pressure. Only under the safe¬ty temperature and pressure can open the sterilizer's cover. Make sure the operator’s safety.
The structure of cover’s opening:
Using shift place type of quickopen cover to improve sealing and safety performance.
Preset program:
Can preset fixed program that sterilize solid body.
Memory storage system:
Store the last operation program so convenient next operation.
Digital display screen:
Digital display screen and working indicator Light display run¬ning state.
Safety devices:
Interlock device, overtemperature and over pressure pro¬tecting system, burned protection, safety relief valve, current Leakage protector and automatic fault detection.
| Technical Parameter |
| Parameter / Model | SN-DSX-24L-Ⅰ | SN-DSX-30L-Ⅰ |
| Non-medical | Non-medical | |
| Configuration | Semi-Automatic Control | Semi-Automatic Control |
| Material / Pot wall thickness(mm) | Stainless steel / 2.0 | Stainless ste el / 2.0 |
| Volume / GW | 24L/25Kg | 30L/32Kg |
| Voltage / Power | 220V/2Kw | 220V/2Kw |
| Packing size ( L X W X H mm ) | 500 X 500 X 800 | 500 X 500 X 900 |
| Product Size ( L X W X H mm ) | 370x430x730 | 370x430x820 |
| Sterilization chamber volume (D X H mm) | 280 X 495 | 280 X 585 |
| Use Volume ( DxH mm) | 269x330 | 269x420 |
| Time setting range | 0-999min | 0-999min |
| Rated working pressure | 0.142MPa | 0.142MPa |
| Sterilization temperature setting range | 50~126 °C | 50~126 °C |
