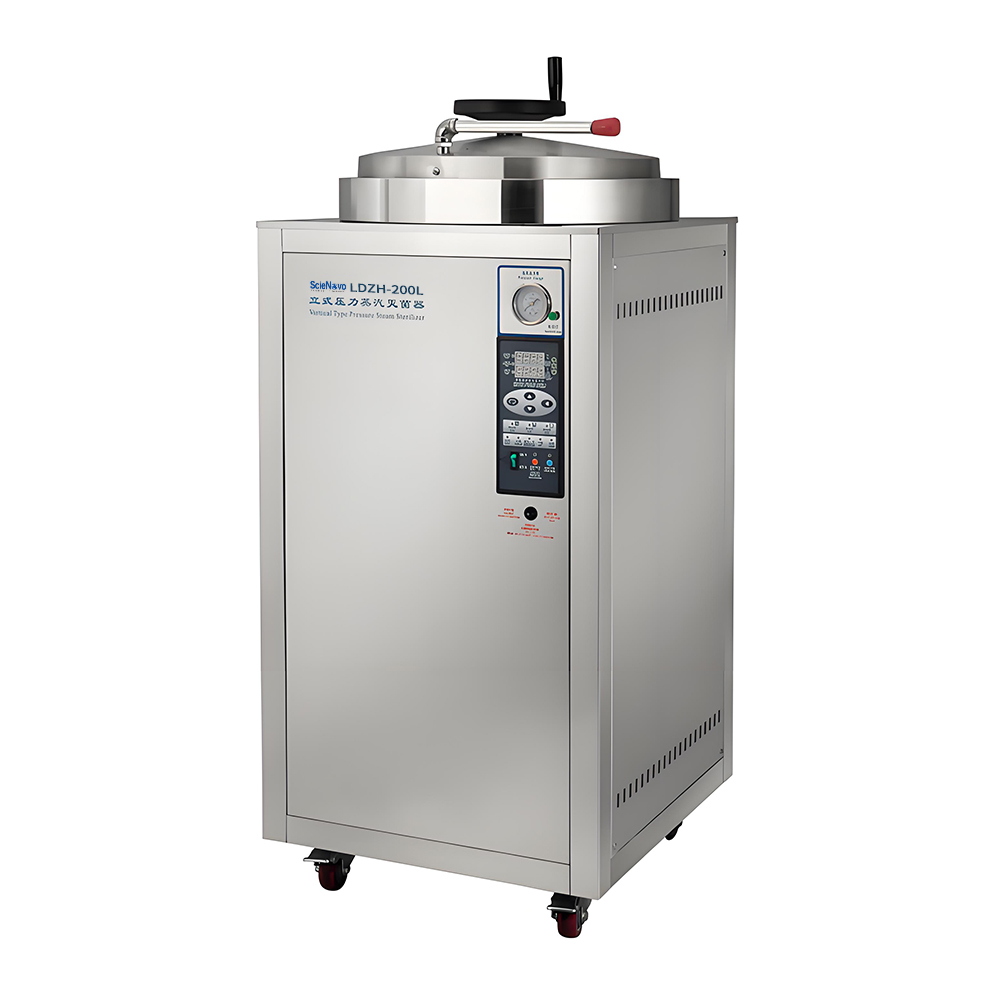

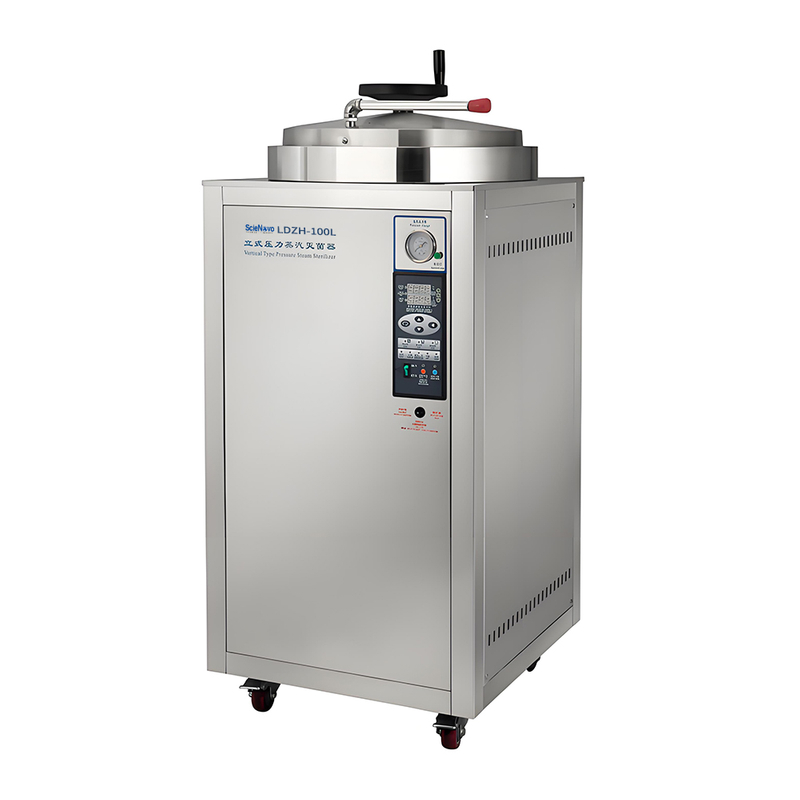

SN-LDZH-100L;SN-LDZH-150L;SN-LDZH-200L
scienovo
ISO9001/CE
2 Years
OEM Service
| Quantity: | |
|---|---|
Product Features |
Intelligent microcomputer control system: Using LED digital control system; After steriliztion finished, sterilizer will automatic alarm and shut down.
Electric interlock device: The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizers cover. Make sure the operators safety
The structure of cover's opening: Using hand wheel rotary type cover to improve sealing and safety performance. Preset program： Can preset fixed program that sterilize and dry solid body.
Memory Storage system： Store the last operation pro-gram so convenient next operation.
Interface check： provide temperature and pressure check interface; convenient to check mutiple position temperature measurement.
Digital display screen： Digital display screen and work¬ing indicator Light display running state.
Safety devices： Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current Leakage protector and automatic fault detection.
Print function： Print the current temperature and sterili¬zation time.
Technical Parameter |
Product Model | LDZH-100L | LDZH-150L | LDZH-200L |
Non-medical | Non-medical | Non-medical | |
Configuration | Semi-Automatic Control | Semi-Automatic Control | Semi-Automatic Control |
The main material | Stainless steel | Stainless steel | Stainless steel |
Volume/GW | 100L/188Kg | 150L/215Kg | 200L/238Kg |
Voltage / Power | 380V/6 Kw | 380V / 6Kw | 380V / 6Kw |
Packing size (L X W X H mm) | 760X780X1310 | 760 X710 X1520 | 750 X720 X1690 |
Product Size (L X W X H mm) | 650x650x1200 | 650x650x1400 | 650x650x1700 |
Sterilization chamber volume(D X H mm) | 500 x 550 | 500 x 760 | 500 x 1000 |
Use Volumn ( DxH mm) | 650x650x1200 | 650x650x1400 | 650x650x1700 |
Basket Size ( DXH mm) | 465x230x2pcs | 465x230x3pcs | 465x230x4pcs |
Time setting range | 0-99 h | 0-99 h | 0-99 h |
Rated working pressure | 0.217MPa | 0.217MPa | 0.217MPa |
Sterilization temperature setting range | 50~134°C | 50~134°C | 50~134°C |
Product Features |
Intelligent microcomputer control system: Using LED digital control system; After steriliztion finished, sterilizer will automatic alarm and shut down.
Electric interlock device: The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilizers cover. Make sure the operators safety
The structure of cover's opening: Using hand wheel rotary type cover to improve sealing and safety performance. Preset program： Can preset fixed program that sterilize and dry solid body.
Memory Storage system： Store the last operation pro-gram so convenient next operation.
Interface check： provide temperature and pressure check interface; convenient to check mutiple position temperature measurement.
Digital display screen： Digital display screen and work¬ing indicator Light display running state.
Safety devices： Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current Leakage protector and automatic fault detection.
Print function： Print the current temperature and sterili¬zation time.
Technical Parameter |
Product Model | LDZH-100L | LDZH-150L | LDZH-200L |
Non-medical | Non-medical | Non-medical | |
Configuration | Semi-Automatic Control | Semi-Automatic Control | Semi-Automatic Control |
The main material | Stainless steel | Stainless steel | Stainless steel |
Volume/GW | 100L/188Kg | 150L/215Kg | 200L/238Kg |
Voltage / Power | 380V/6 Kw | 380V / 6Kw | 380V / 6Kw |
Packing size (L X W X H mm) | 760X780X1310 | 760 X710 X1520 | 750 X720 X1690 |
Product Size (L X W X H mm) | 650x650x1200 | 650x650x1400 | 650x650x1700 |
Sterilization chamber volume(D X H mm) | 500 x 550 | 500 x 760 | 500 x 1000 |
Use Volumn ( DxH mm) | 650x650x1200 | 650x650x1400 | 650x650x1700 |
Basket Size ( DXH mm) | 465x230x2pcs | 465x230x3pcs | 465x230x4pcs |
Time setting range | 0-99 h | 0-99 h | 0-99 h |
Rated working pressure | 0.217MPa | 0.217MPa | 0.217MPa |
Sterilization temperature setting range | 50~134°C | 50~134°C | 50~134°C |
