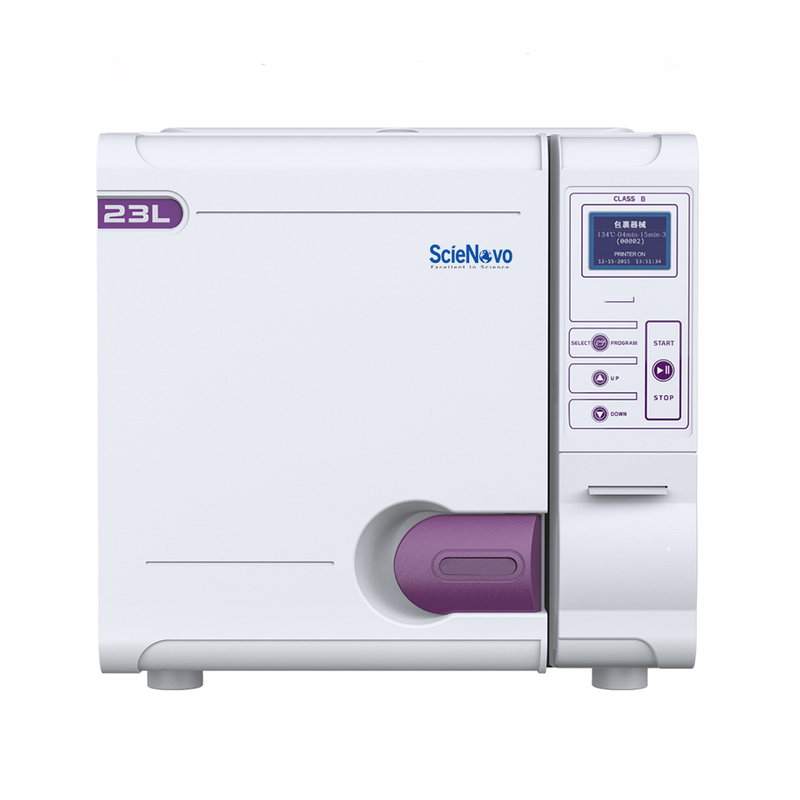

SN-JQ-18;SN-JQ-23
scienovo
ISO9001/CE
2 Years
OEM Service
| Availability: | |
|---|---|
| Quantity: | |
Product Features |
Built-in Thermal printer: Installed under the operating control panel, open the power cover position.
Bluetooth label thermal printer: after the autoclave is connected to the printer by Bluetooth signal, order of auto-clave send to printer. After the label is printed, it is posted at package. The contents of the label is date, time,S . N , program cycle. Convenience the process is traced.( JQ-A)
Mobile APP:monitor the various operating conditions of the autoclave. You can operate the sterlizer by phone. After sterilization is over, send a message to your phone.etc .(JQ-A)
Water Monitoring Device:when you supply the unqualified distilled water, the autoclave runs will is stopped.
European Class B and S, in accordance with EN 13060 standard, with three times pre-vacuum and one times pre-vacuum, pulse drying function. Vacuum index up to-85KPa, the device residual humidity<0.2%. Being able to sterilize instruments that are packed, unpacked, solid,Hollow A, Hollow B and Hollow B pipeline. High efficiency, allwave sterilizing.
Color LCD, Menu Interface (JQ-A); Blue LCD (JQ), PC Automatic Control
With tests of “BOWIE & DICK” , “HELIX”, “VACUUM” , “ PARTS PERFORMANCE” (JQ-A)
User-defined Function. Adjust sterilization temperature, vacuum times, sterilization time, drying time.
New rapid steam generator of stainless-steel pipe, completely solve the Silica gel pipeline and seal because itis aging. Set “WASH” program , cleaning pipeline to avoid clogging.( JQ-A)
The autoclave stores 50 sterilization records. By USB connector download to U disk (JQ-A)
Save electricity Function: Delay-Start, Sleep-Mode, turn off after sterilization, Power recovery restart (JQ-A)
Water and steam separation device. In order to improve the life of the vacuum pump, improve the pulse vacuum value, so that the device is more reliable sterilization, enhance the dryness of the device.
Automatic Distilled water function . Upward-Open water tank .
Double Temperature sensor inside chamber, Independent implementation system and evaluation system (JQ-A)
ULKA brand mini water pump. SU304 stripe stainless steel . Double door lock control structure.
Upgrade Function
Built-in Thermal printer: Installed under the operating control panel, open the power cover position.
Bluetooth label thermal printer: after the autoclave is connected to the printer by Bluetooth signal, order of auto-clave send to printer. After the label is printed, it is posted at package. The contents of the label is date, time,S . N , program cycle. Convenience the process is traced.( JQ-A)
Mobile APP:monitor the various operating conditions of the autoclave. You can operate the sterlizer by phone. After sterilization is over, send a message to your phone.etc .(JQ-A)
Water Monitoring Device:when you supply the unqualified distilled water, the autoclave runs will is stopped.
Technical Parameter |
Model | SN-JQ-18 | SN-JQ-23 | SN-JQ-18A | SN-JQ-23A | |
Capacity | 18L | 23L | 18L | 23L | |
Sterilizing temperature | 121°C,134°C | ||||
Pressure | 85KPa | ||||
Special function | Kill The AIDS(HIV), Hepatitis B(HBV)Mad Cow Virus And Bacillus | ||||
Dry procedure | Vacuum Drying | ||||
Display | Blue LCD/ Multi-Lanuage/ USB /New Rapd Steam Generator | Color LCD / USB / Delay-Smart / Sleep Mode / Pipeline Cleaning | |||
Sterilization program | 12 kinds of programs | 50 kinds of programs | |||
Test program | Bowie & Dick Test, Vacuum Test, Helix Test | Bowie & Dick” , “Helix”, “Vacuum” , “ Parts Performance” | |||
Sterilizing data | print by optional external mini-printer or download by USB port | ||||
Safety features | Safe Valve; Double-control lock system and self-test alam system | ||||
Water supply system | two water tanks inside, capacity of reservoirs (3.5L fresh water and 5L waste water) | ||||
AC power | 220V/50Hz | ||||
Rated power | 1800W | ||||
Instrument containers | 5-layer activity pallet rack with 3 trays | ||||
Optional | Built-in Printer | Bluetooth; Water Monitoring, Built-in Printer | |||
Chamber size | 250X355mm | 250X450mm | 250X355mm | 250X450mm | |
N.W./G.W. | 45/48 Kg | 47/50 Kg | 45/48 Kg | 47/50 Kg | |
Packing size | 660X550X560mm | 660X550X560mm | 660X550X560mm | 660X550X560mm | |
Product Features |
Built-in Thermal printer: Installed under the operating control panel, open the power cover position.
Bluetooth label thermal printer: after the autoclave is connected to the printer by Bluetooth signal, order of auto-clave send to printer. After the label is printed, it is posted at package. The contents of the label is date, time,S . N , program cycle. Convenience the process is traced.( JQ-A)
Mobile APP:monitor the various operating conditions of the autoclave. You can operate the sterlizer by phone. After sterilization is over, send a message to your phone.etc .(JQ-A)
Water Monitoring Device:when you supply the unqualified distilled water, the autoclave runs will is stopped.
European Class B and S, in accordance with EN 13060 standard, with three times pre-vacuum and one times pre-vacuum, pulse drying function. Vacuum index up to-85KPa, the device residual humidity<0.2%. Being able to sterilize instruments that are packed, unpacked, solid,Hollow A, Hollow B and Hollow B pipeline. High efficiency, allwave sterilizing.
Color LCD, Menu Interface (JQ-A); Blue LCD (JQ), PC Automatic Control
With tests of “BOWIE & DICK” , “HELIX”, “VACUUM” , “ PARTS PERFORMANCE” (JQ-A)
User-defined Function. Adjust sterilization temperature, vacuum times, sterilization time, drying time.
New rapid steam generator of stainless-steel pipe, completely solve the Silica gel pipeline and seal because itis aging. Set “WASH” program , cleaning pipeline to avoid clogging.( JQ-A)
The autoclave stores 50 sterilization records. By USB connector download to U disk (JQ-A)
Save electricity Function: Delay-Start, Sleep-Mode, turn off after sterilization, Power recovery restart (JQ-A)
Water and steam separation device. In order to improve the life of the vacuum pump, improve the pulse vacuum value, so that the device is more reliable sterilization, enhance the dryness of the device.
Automatic Distilled water function . Upward-Open water tank .
Double Temperature sensor inside chamber, Independent implementation system and evaluation system (JQ-A)
ULKA brand mini water pump. SU304 stripe stainless steel . Double door lock control structure.
Upgrade Function
Built-in Thermal printer: Installed under the operating control panel, open the power cover position.
Bluetooth label thermal printer: after the autoclave is connected to the printer by Bluetooth signal, order of auto-clave send to printer. After the label is printed, it is posted at package. The contents of the label is date, time,S . N , program cycle. Convenience the process is traced.( JQ-A)
Mobile APP:monitor the various operating conditions of the autoclave. You can operate the sterlizer by phone. After sterilization is over, send a message to your phone.etc .(JQ-A)
Water Monitoring Device:when you supply the unqualified distilled water, the autoclave runs will is stopped.
Technical Parameter |
Model | SN-JQ-18 | SN-JQ-23 | SN-JQ-18A | SN-JQ-23A | |
Capacity | 18L | 23L | 18L | 23L | |
Sterilizing temperature | 121°C,134°C | ||||
Pressure | 85KPa | ||||
Special function | Kill The AIDS(HIV), Hepatitis B(HBV)Mad Cow Virus And Bacillus | ||||
Dry procedure | Vacuum Drying | ||||
Display | Blue LCD/ Multi-Lanuage/ USB /New Rapd Steam Generator | Color LCD / USB / Delay-Smart / Sleep Mode / Pipeline Cleaning | |||
Sterilization program | 12 kinds of programs | 50 kinds of programs | |||
Test program | Bowie & Dick Test, Vacuum Test, Helix Test | Bowie & Dick” , “Helix”, “Vacuum” , “ Parts Performance” | |||
Sterilizing data | print by optional external mini-printer or download by USB port | ||||
Safety features | Safe Valve; Double-control lock system and self-test alam system | ||||
Water supply system | two water tanks inside, capacity of reservoirs (3.5L fresh water and 5L waste water) | ||||
AC power | 220V/50Hz | ||||
Rated power | 1800W | ||||
Instrument containers | 5-layer activity pallet rack with 3 trays | ||||
Optional | Built-in Printer | Bluetooth; Water Monitoring, Built-in Printer | |||
Chamber size | 250X355mm | 250X450mm | 250X355mm | 250X450mm | |
N.W./G.W. | 45/48 Kg | 47/50 Kg | 45/48 Kg | 47/50 Kg | |
Packing size | 660X550X560mm | 660X550X560mm | 660X550X560mm | 660X550X560mm | |
