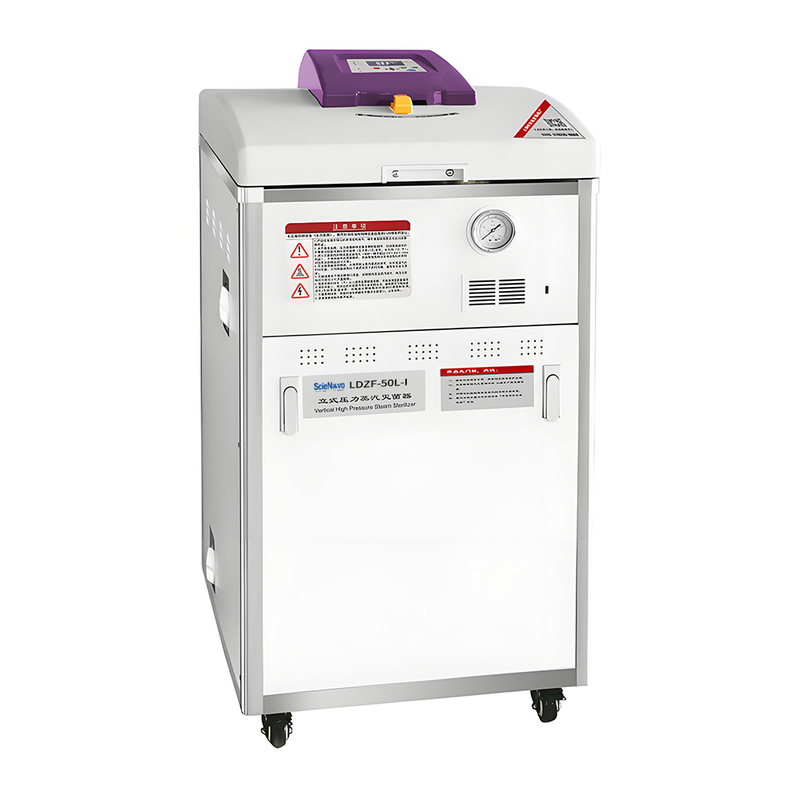

SN-LDZF-50L-I
scienovo
ISO9001/CE
2 Years
OEM Service
| Quantity: | |
|---|---|
Product Features |
Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, steri-lizer will automatic alarm and shut down.
Interlock device： The control system can real time supervision the sterilizer chamber's temperature and pressure. Only under the safety temperature and pressure can open the sterilie^s cover.Mack sure the operators safety.
The structure of cover's opening： Using 8 rotary ex-tendable stick to improve sealing and safety performance. Preset program： Can preset fixed program that sterilize solid body.
Memory storage system： Store the Last operation pro-gram so convenient next operation.
Interface check： provide temperature and pressure check interface; convenient to check multiple position temperature measurement.
Digital display screen： Digital display screen and work-ing indicator Light display running state.
Safety devices： Interlock device, overtemperature and over pressure protecting system,burned protection, safety relief valve, current Leakage protector and automatic fault detection.
Print function： Print the current temperature and sterilization time.
Technical Parameter |
Product Model | SN-LDZF-30L | SN-LDZF-30L-I |
SN-LZDF-50L | SN-LZDF-50L-I | |
SN-LDZF-75L | SN-LDZF-75L-I | |
Non-medical | Non-medical | |
Configuration | Semi-Automatic Control | Fully-Automatic Control |
The main material | Stainless steel | Stainless steel |
Volume / GW | 30L/95Kg | |
50L/100Kg | ||
75L/110Kg | ||
Voltage / Power | 220V/3.5KW | 220V/3.5KW |
Packing size (L X W X H mm) | 780x660x1160mm | 780x660x1160mm |
780x660x1160mm | 780x660x1160mm | |
780x660x1320mm | 780x660x1320mm | |
Product Size ( Lx Wx H mm) | 570x630x970 | |
570x630x970 | ||
570x630x1140 | ||
Sterilization chamber volume(D X H mm) | 370X320 | 370X320 |
370X500 | 370X500 | |
370X690 | 370X690 | |
Basket Size ( DXH mm) | 335x190 (30L) | |
335x360 (50L) | ||
335x190&335x360 (75L) | ||
Time setting range | 0-99 h | 0-99 h |
Rated working pressure | 0.217MPa | 0.217MPa |
Sterilization temperature setting range | 50~134°C | 50~134°C |
