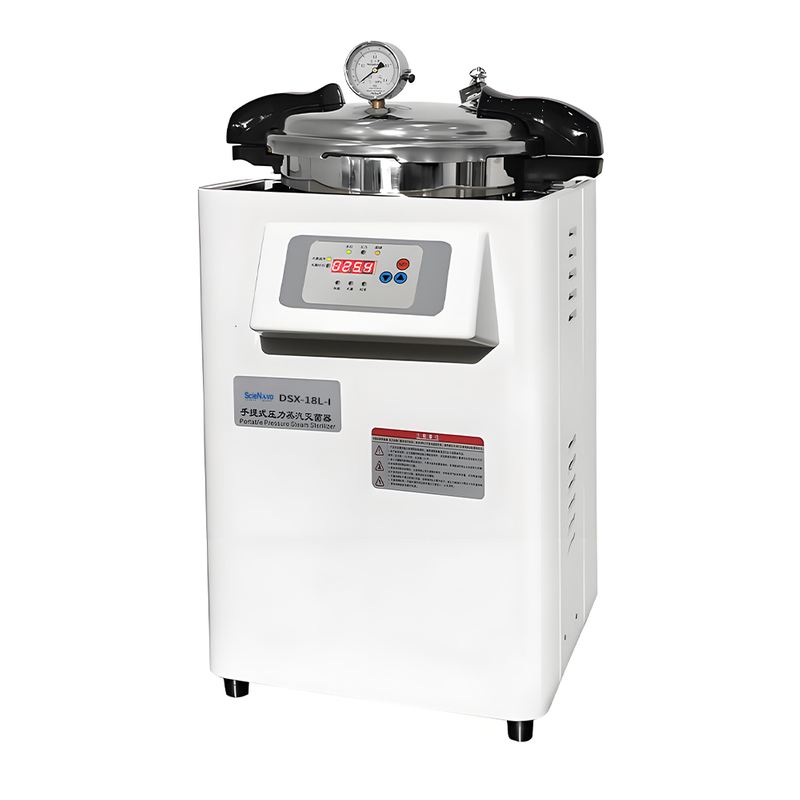

SN-DSX-18L-I
scienovo
ISO9001/CE
2 Years
OEM Service
| Quantity: | |
|---|---|
| Product Features |
Intelligent microcomputer control system:
Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
Interlock device:
The control system can real time supervision the sterilizer chambers temperature and pressure. Only under the safety temperature and pressure can open the sterilizer's cover. Make sure the operators safety.
The structure of cover's opening:
Using shift place type of quick-open cover to improve sealing and safety performance.
Preset program:
Can preset fixed program that sterilize solid body.
Memory storage system:
Store the Last operation program so convenient next operation.
Digital display screen:
Digital display screen and working indicator light display running state.
Safety devices:
Interlock device, overtemperature and over pressure pro¬tecting system, burned protection, safety relief valve, current Leakage protector and automatic fault detection.
| Technical Parameter |
| Product Model | SN-DSX-18L-I |
| Non-medical | |
| Configuration | Semi-Automatic Control |
| Material/Pot wall thickness(mm) | 2mm shell: Temperature resistant high quality engineering plastics, Pan: 2mm High Quality 304 stainless Steel Material |
| Volume / GW | 18L/16Kg |
| Voltage / Power | 220V/2Kw |
| Packing size (L X W X H mm) | 400x380x620 |
| Sterilization chamber volume(D X H mm) | 280 X 395 |
| Use Volume ( DxH mm) | 269x260 |
| Time setting range | 0-999 min |
| Rated working pressure | 0.142MPa |
| Sterilization temperature setting range | 50~126°C |
| Product Features |
Intelligent microcomputer control system:
Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
Interlock device:
The control system can real time supervision the sterilizer chambers temperature and pressure. Only under the safety temperature and pressure can open the sterilizer's cover. Make sure the operators safety.
The structure of cover's opening:
Using shift place type of quick-open cover to improve sealing and safety performance.
Preset program:
Can preset fixed program that sterilize solid body.
Memory storage system:
Store the Last operation program so convenient next operation.
Digital display screen:
Digital display screen and working indicator light display running state.
Safety devices:
Interlock device, overtemperature and over pressure pro¬tecting system, burned protection, safety relief valve, current Leakage protector and automatic fault detection.
| Technical Parameter |
| Product Model | SN-DSX-18L-I |
| Non-medical | |
| Configuration | Semi-Automatic Control |
| Material/Pot wall thickness(mm) | 2mm shell: Temperature resistant high quality engineering plastics, Pan: 2mm High Quality 304 stainless Steel Material |
| Volume / GW | 18L/16Kg |
| Voltage / Power | 220V/2Kw |
| Packing size (L X W X H mm) | 400x380x620 |
| Sterilization chamber volume(D X H mm) | 280 X 395 |
| Use Volume ( DxH mm) | 269x260 |
| Time setting range | 0-999 min |
| Rated working pressure | 0.142MPa |
| Sterilization temperature setting range | 50~126°C |
