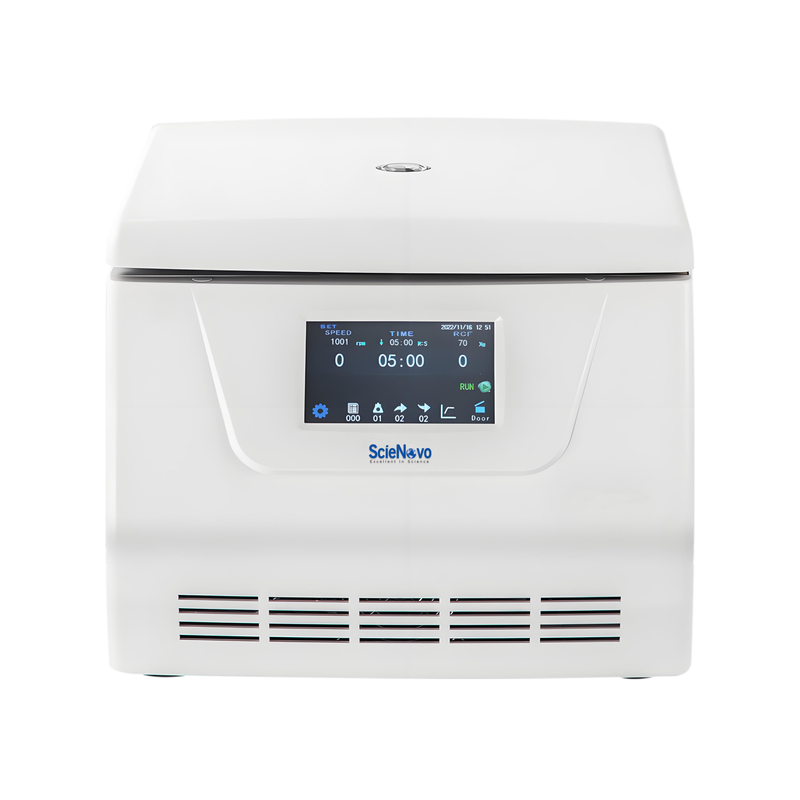

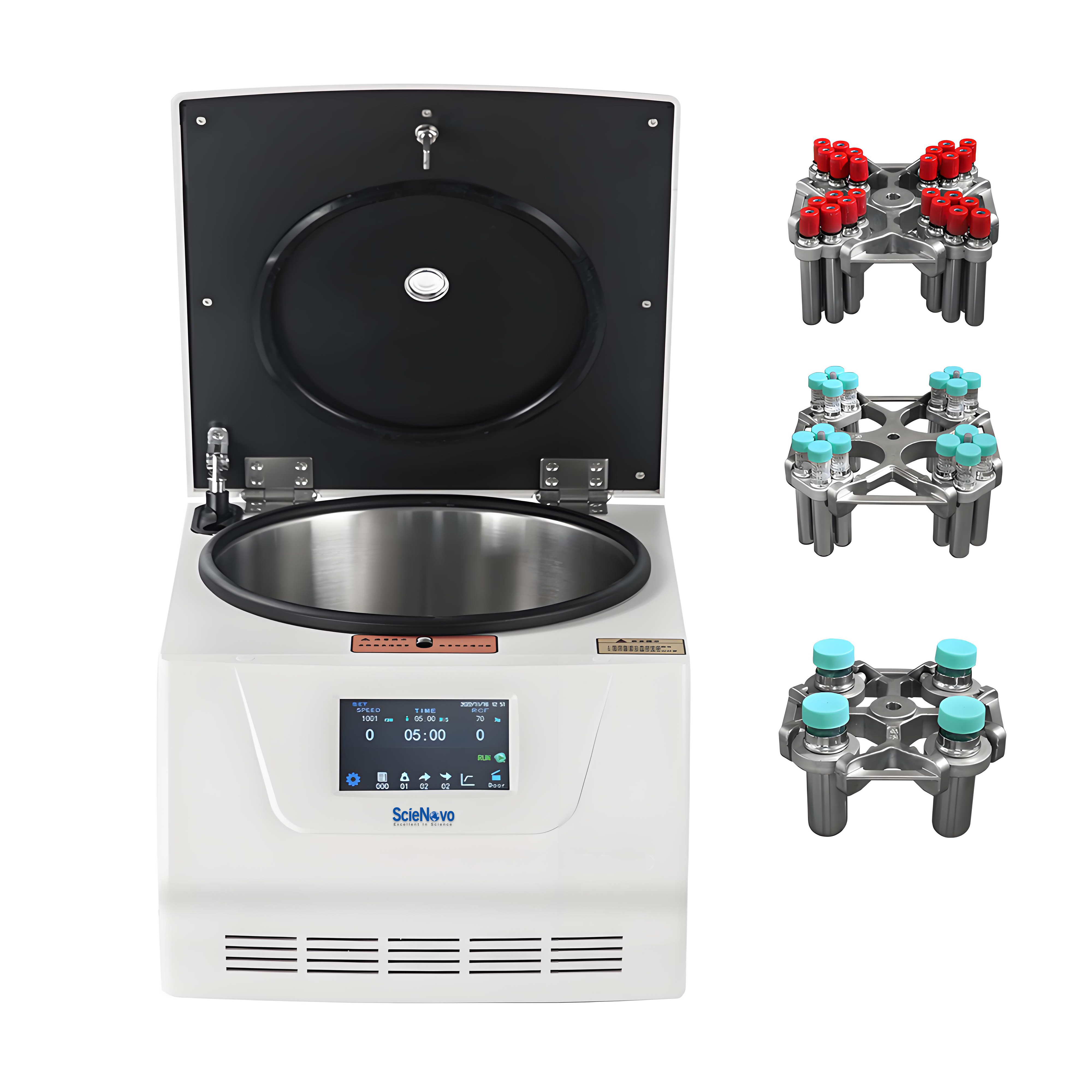

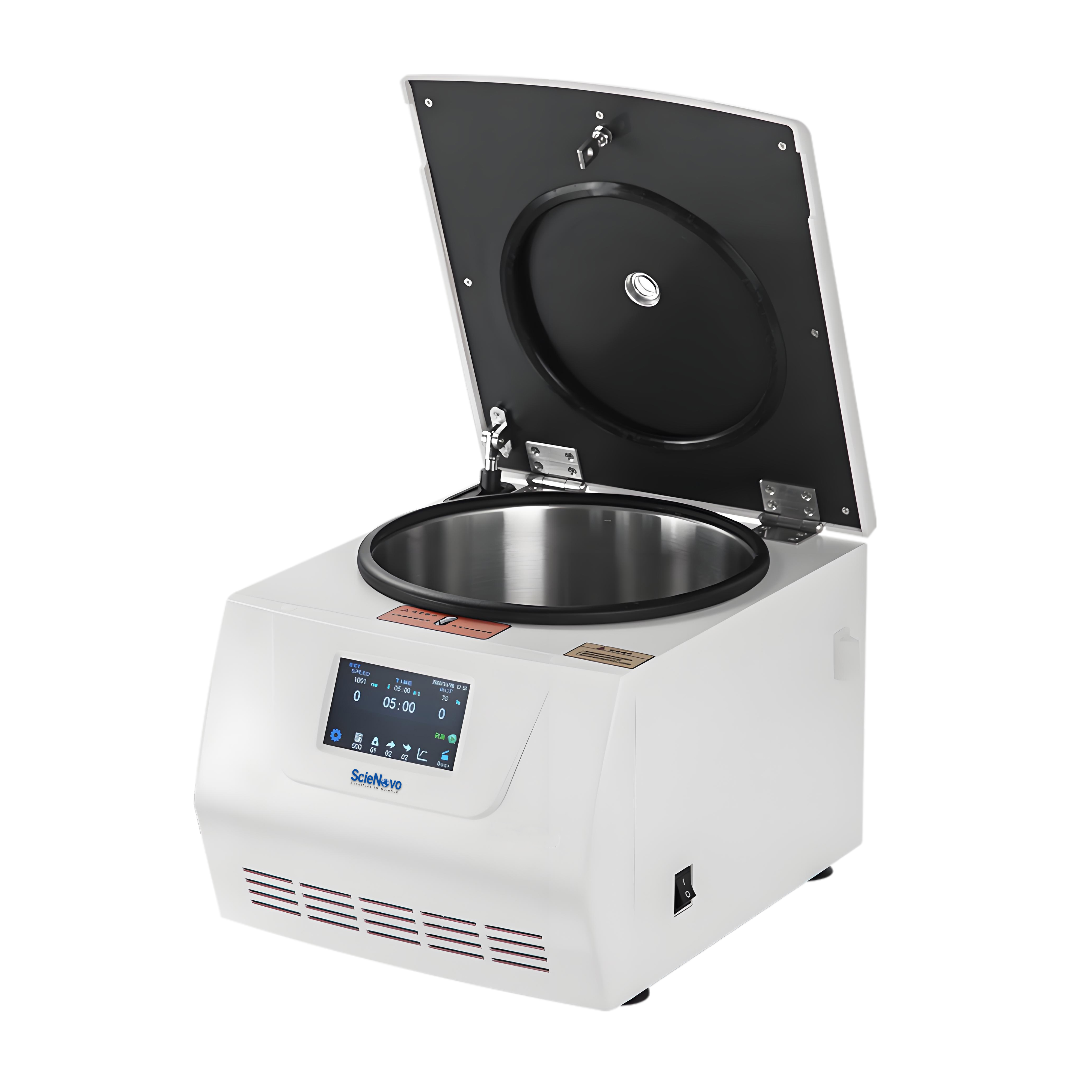

SN-TD-500
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
| Features |
User-friendly functions
Up to 1000 user-defined programs
Up to 1000 run histories, can be exported via USB
Up to 40 rates acceleration and deceleration
Up to 5 stages multi-stage centrifugation mode available
Up to 99h59m59s timer range, 1s increment
LCD touch screen
Simple and clear to show all parameters
Touch screen, easy to set parameters
RCF can be set directly
RPM and RCF covert automatically
User can set parameters even with gloves
User can reset parameters when rotor is spinning
Ensure safety
Microprocessor control
Motorized electronic door lock
Door cannot be opened when rotor is spinning
Gas hinge to prevent door falling
Port in the door for calibration and operation checking
Emergency door lock release
Password to lock the device
Good components
Motor: Variable frequency motor.
stable running, maintenance free, long life
Housing: Thick and strong steel
Chamber: Food grade 304 stainless steel.
anticorrosion and easy to clean
Stainless steel swing out rotor.
Rotors are autoclavable
| Specification |
| Model | TD-500 |
| Max Speed | 5000rpm |
| Max RCF | 4650xg |
| Max Capacity | 6x50ml |
| Speed Accuracy | ±10rpm |
| Time Setting | 1s ～ 99h59m59s |
| Acc/Dec Rate | 40 rates |
| Noise | ≤60dB(A) |
| Power Consumption | 500w |
| Dimension | 495x400x420mm |
| Weight | 27kg |
| Centrifuge Rotor |

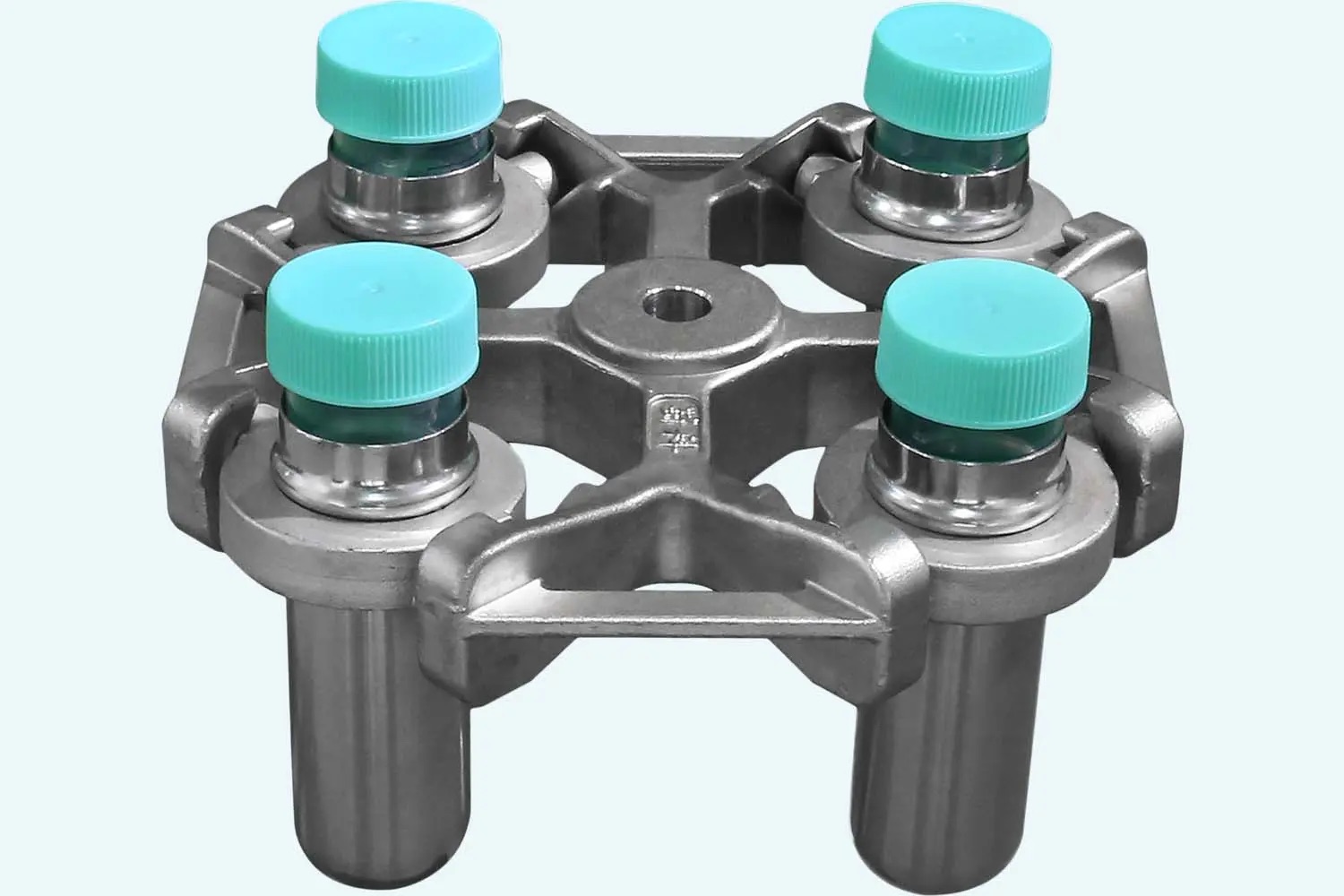

 | Rotor: Swing out rotor Capacity:4x50ml Max Speed:4000rpm Max RCF:2976xg |

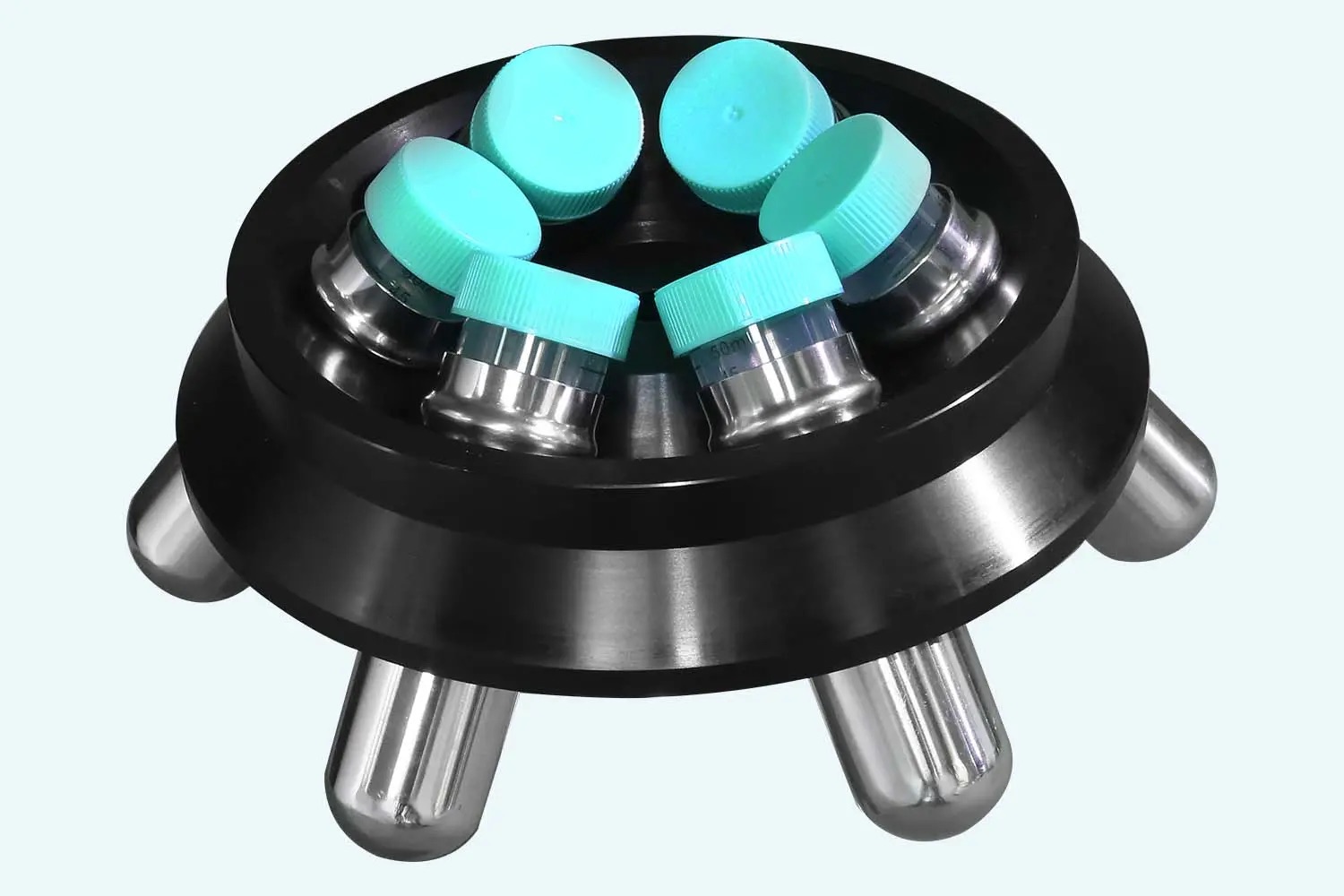

 | Rotor: Fixed angle rotor Capacity:6x50ml Max Speed:5000rpm Max RCF:3558xg |

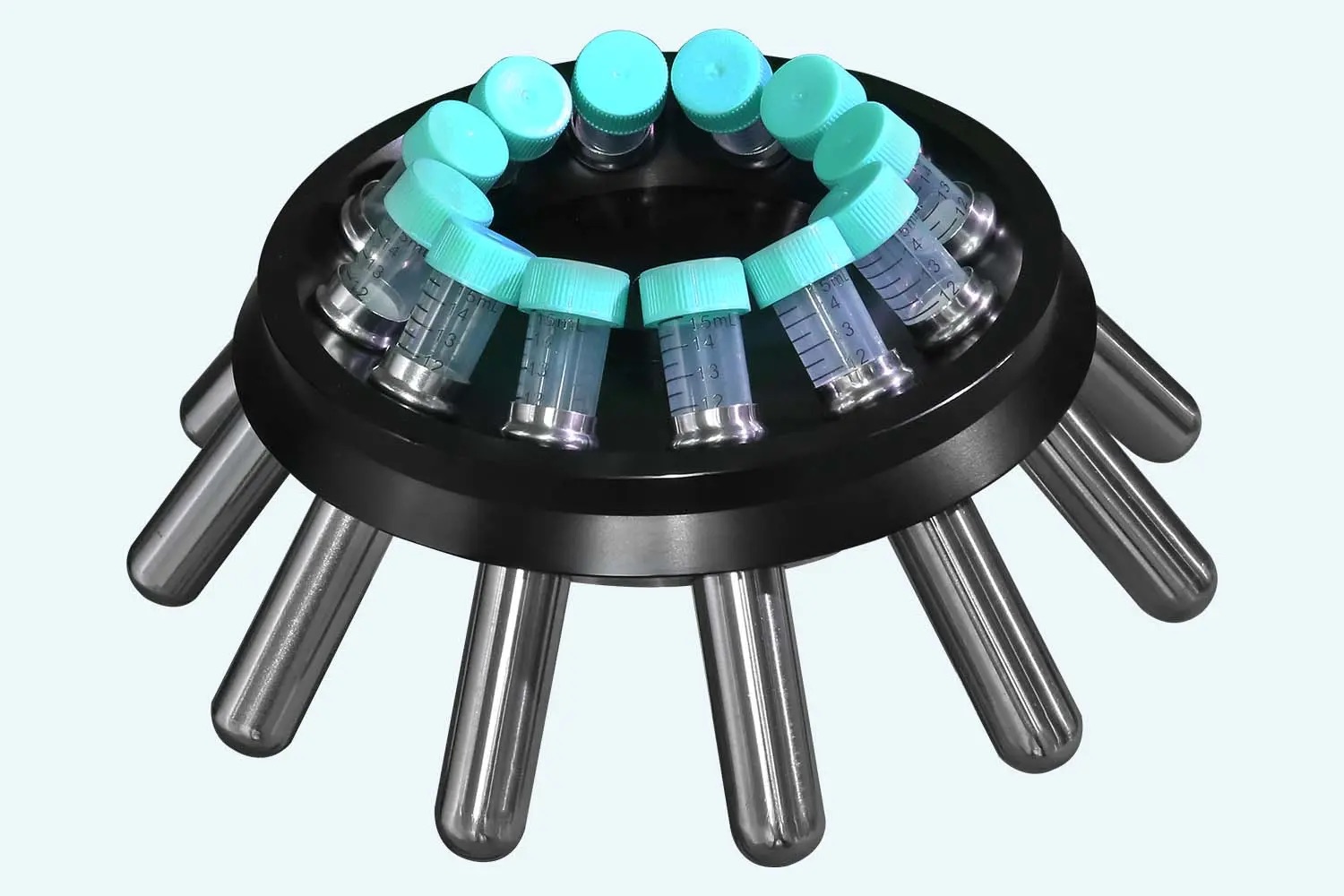

 | Rotor: Fixed angle rotor Capacity:12x15ml Max Speed:5000rpm Max RCF:3558xg |

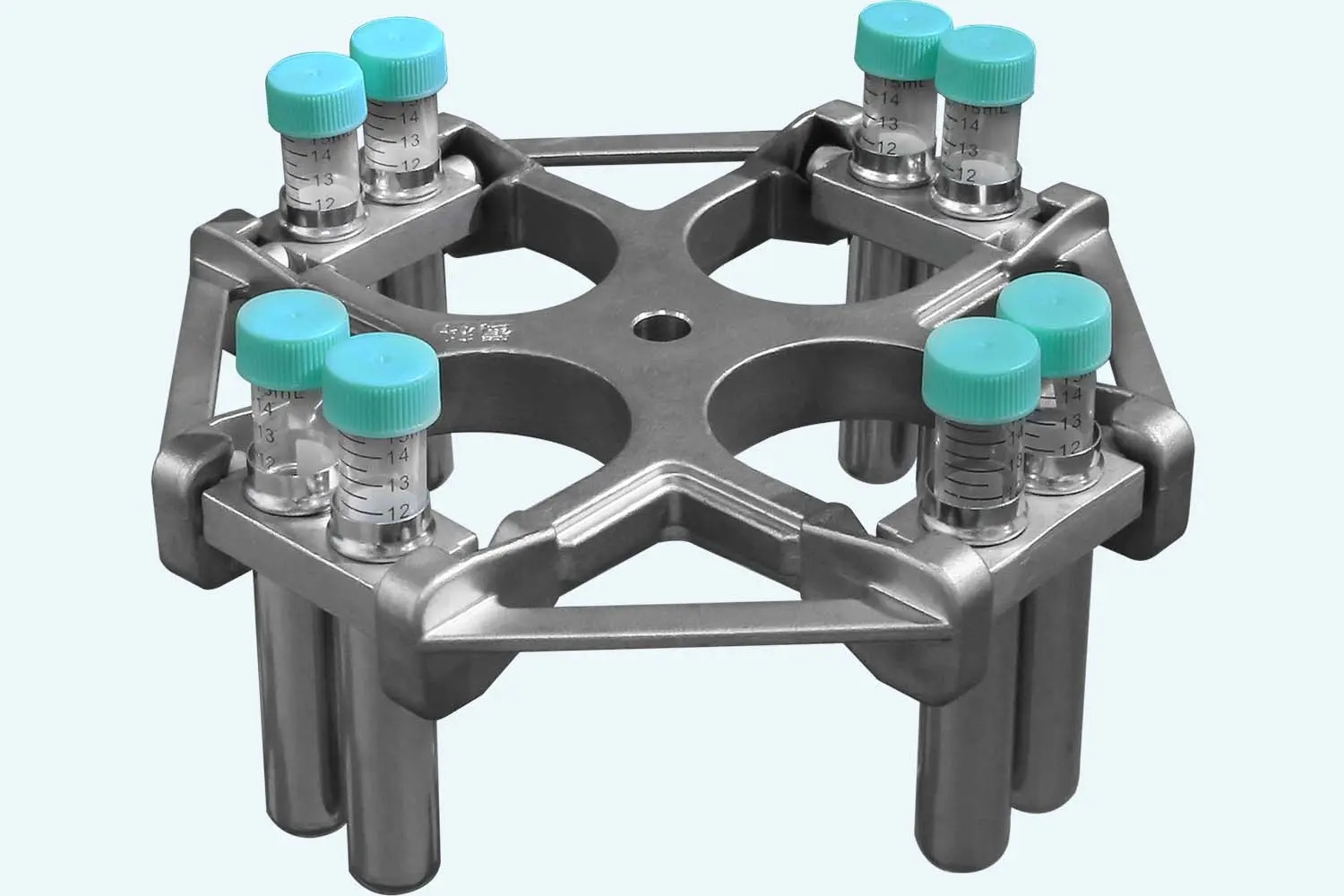

 | Rotor: Swing out rotor Capacity:8x15ml Max Speed:5000rpm Max RCF:4620xg |

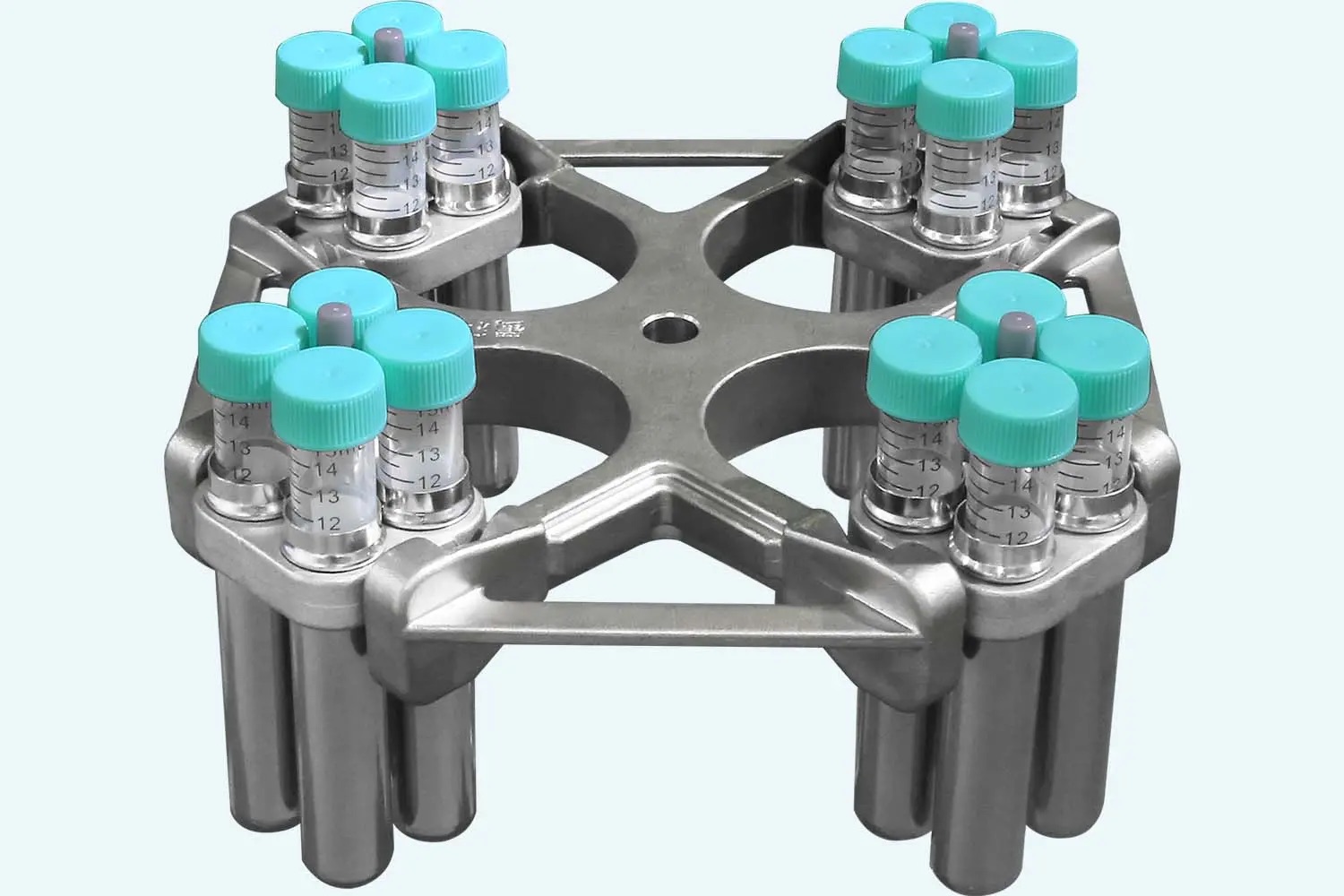

 | Rotor: Swing out rotor Capacity:16x15ml Max Speed:5000rpm Max RCF:4620xg Can choose adapters for blood tubes |

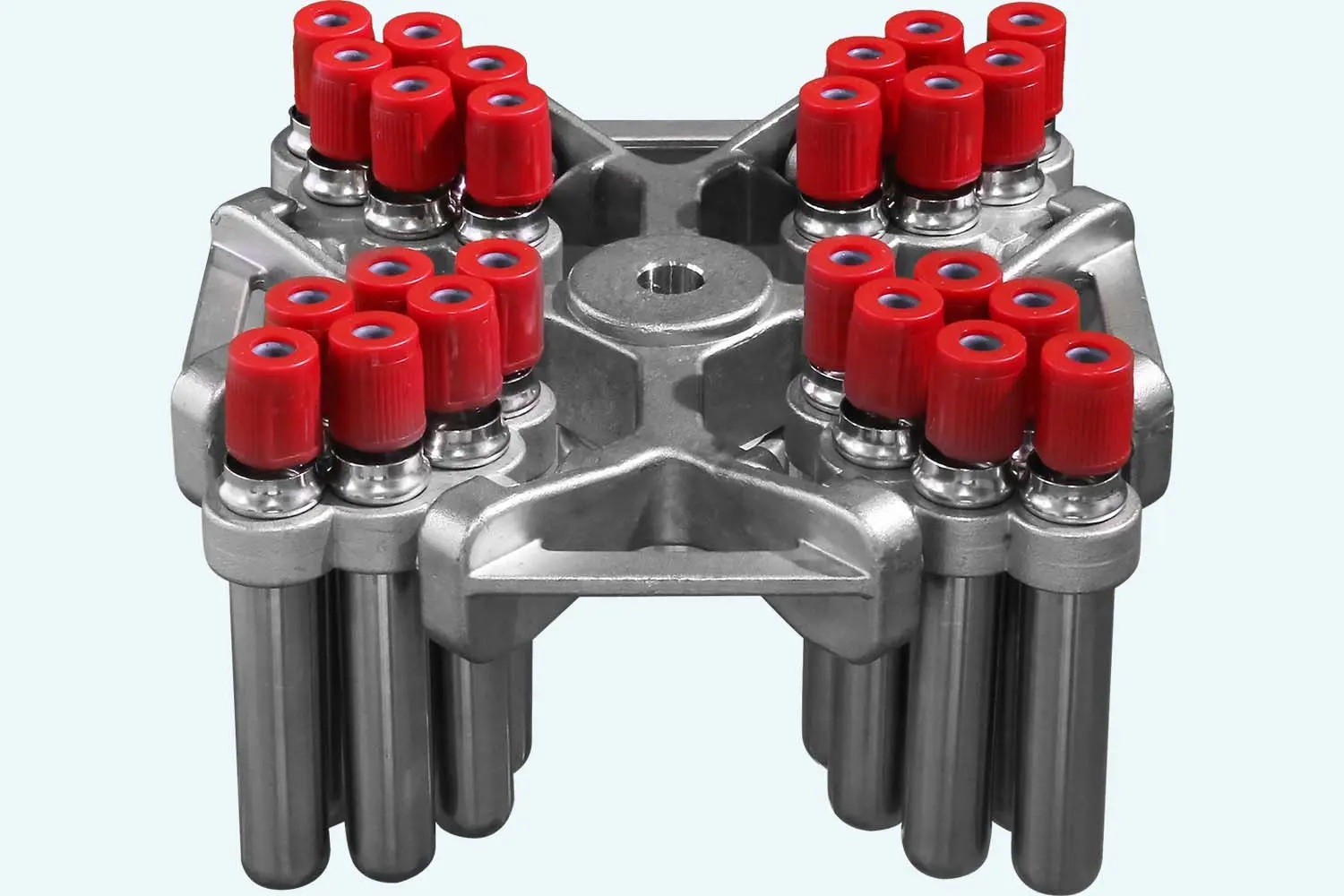

 | Rotor: Swing-out rotor Capacity:24x7ml blood tube Max Speed:5000rpm Max RCF:4650xg |
