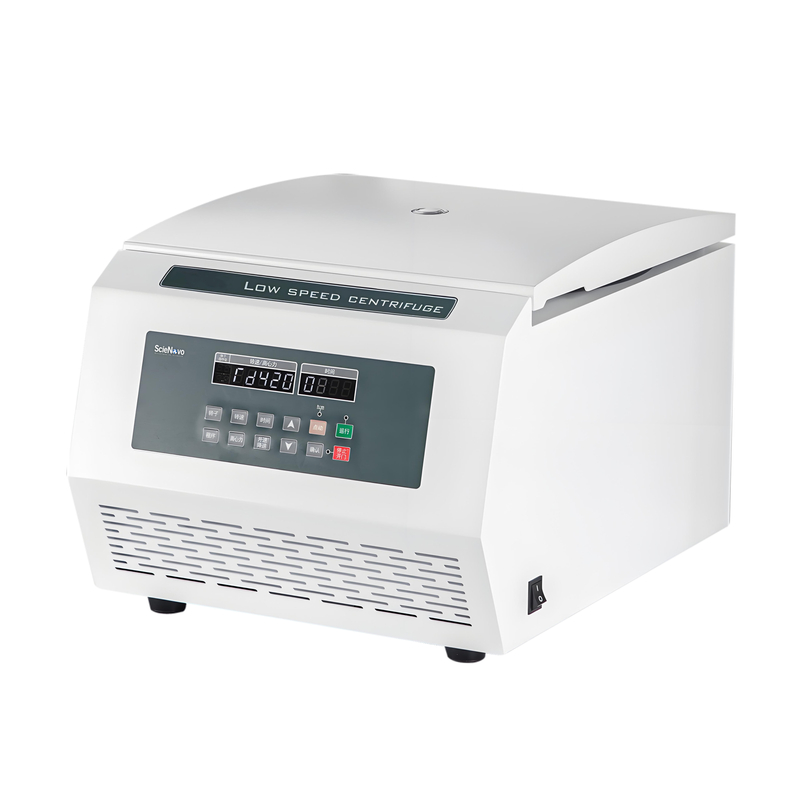

SN-TD-5Z
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Features |
User-friendly functions
up to 100 user-defined programs
up to 20 rates acceleration and deceleration
up to 99h59m59s timer range
up to 5 stages multi-stage centrifugation mode available

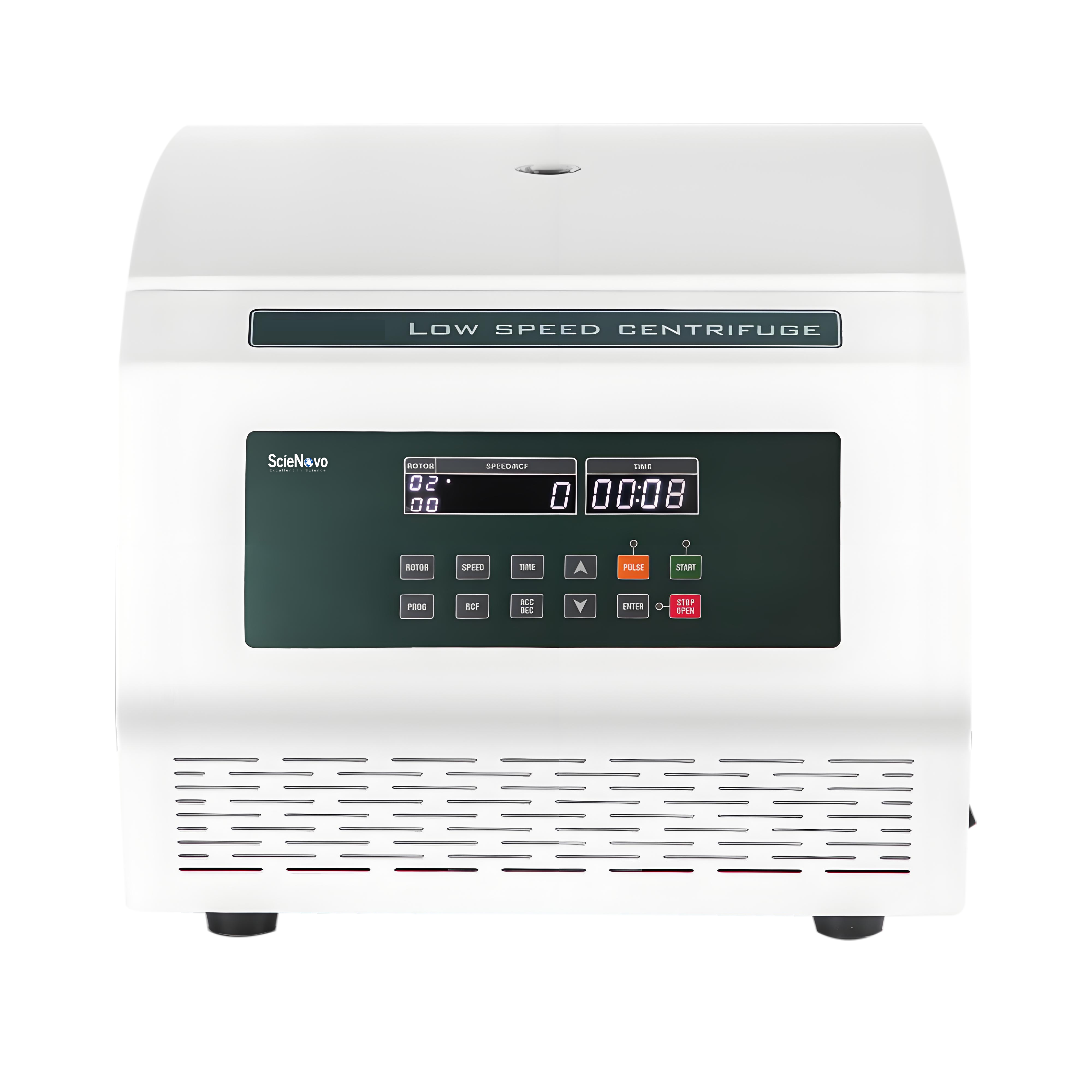

LED screen shows important parameters
RCF can be set directly
Water-proof touch key pad,each parameter has corresponding button to set
User can reset parameters when rotor is spinning
Ensure safety
Microprocessor control

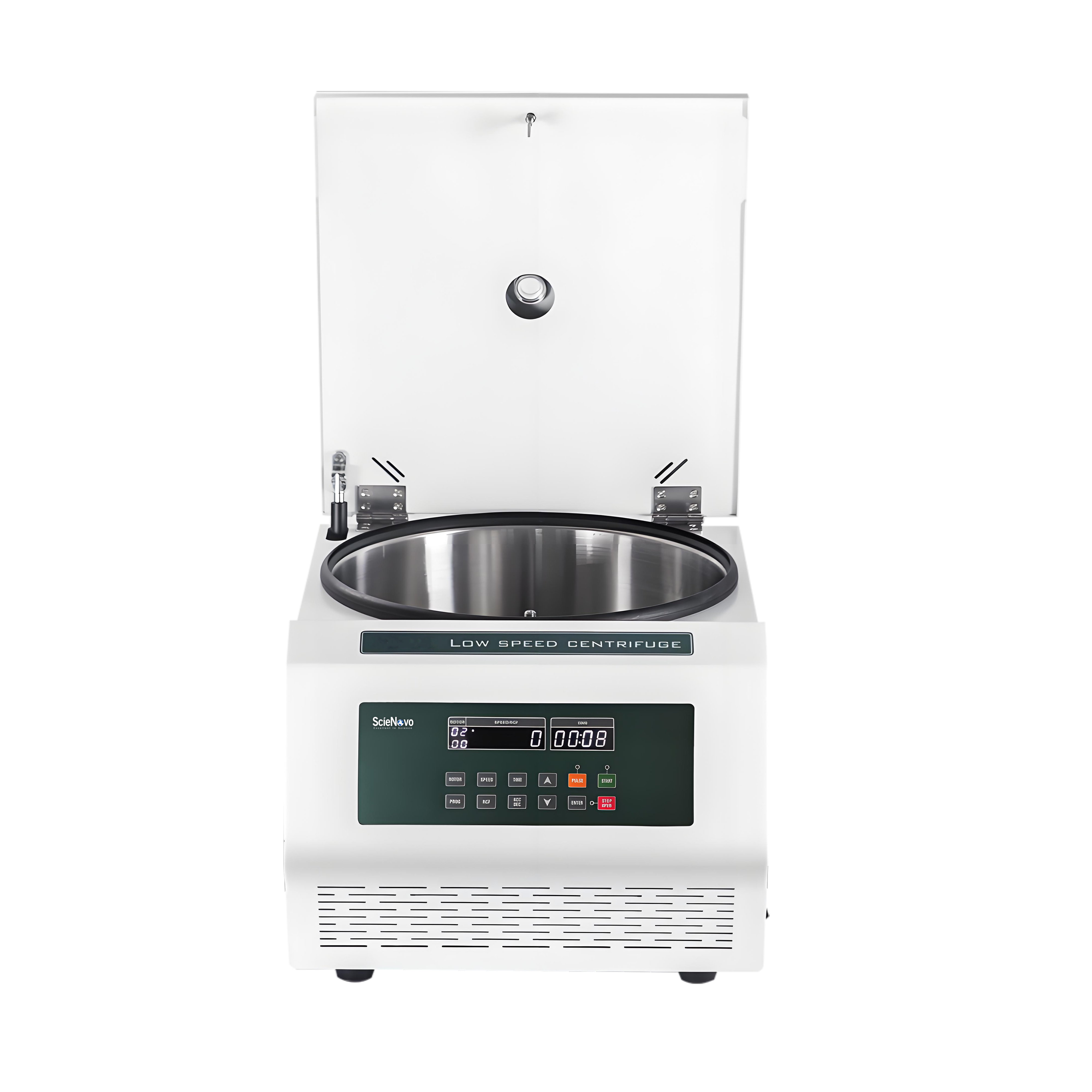

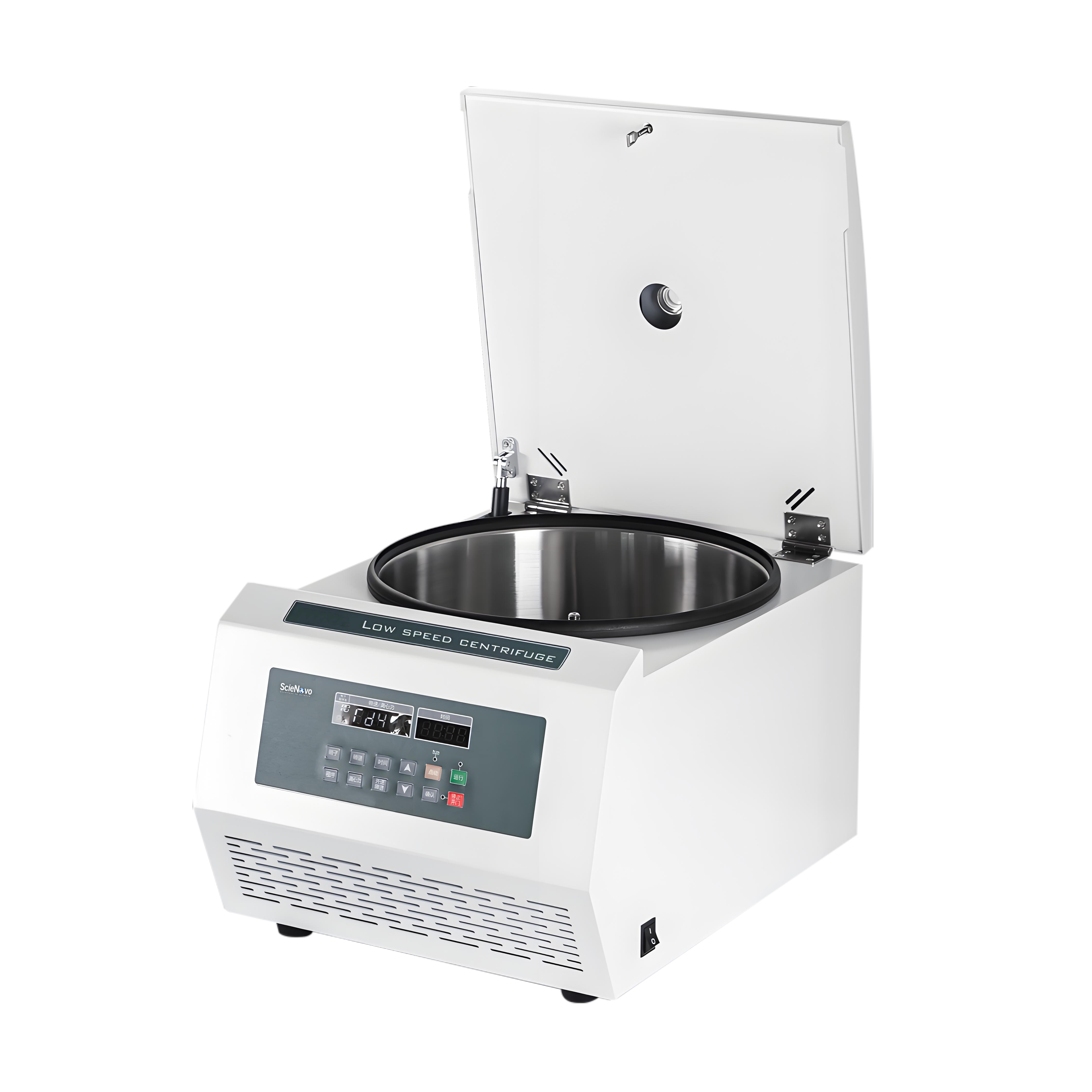

Motorized electronic door lock
Door cannot be opened when rotor is spinning
Gas hinge to prevent door falling
Port in the door for calibration and operation checking
Emergency door lock release
Good components
Motor: Variable frequency motor. Stable running, maintenance free,long life
Housing: Thick and strong steel
Chamber: Food grade 304 stainless steel.
Anticorrosion and easy to clean
Rotor: Stainless steel swing out rotor.
Rotors are autoclavable.
Specification |
Model | TD-5M |
Max Speed | 5000rpm |
Max RCF | 5200xg |
Max Capacity | 4x500ml |
Speed Accuracy | ±10rpm |
Time Setting | 1s～99h59m59s |
Acc/Dec Rate | 40 rates |
Noise | ≤60dB(A) |
Power Consumption | 600w |
Dimension | 550x450x390mm |
Weight | 50kg |
Centrifuge Rotor |
Model | Product Name | Capacity | Max Speed rpm | Max RCF xg |
No.1 | Swing-out Rotor | 4x100ml | 5000rpm | 4650xg |
Swing-out Rotor | 4x50ml | |||
No.2 | Swing-out Rotor | 32x15ml | 4000rpm | 2980xg |
Swing-out Rotor | 24x15ml | |||
Swing-out Rotor | 8x50ml | |||
Swing-out Rotor | 8x100ml | |||
Swing-out Rotor | 48x2-7ml blood tube | |||
No.3 | Microplate Rotor | 2x3x96 well plate | 4000rpm | 2274xg |
