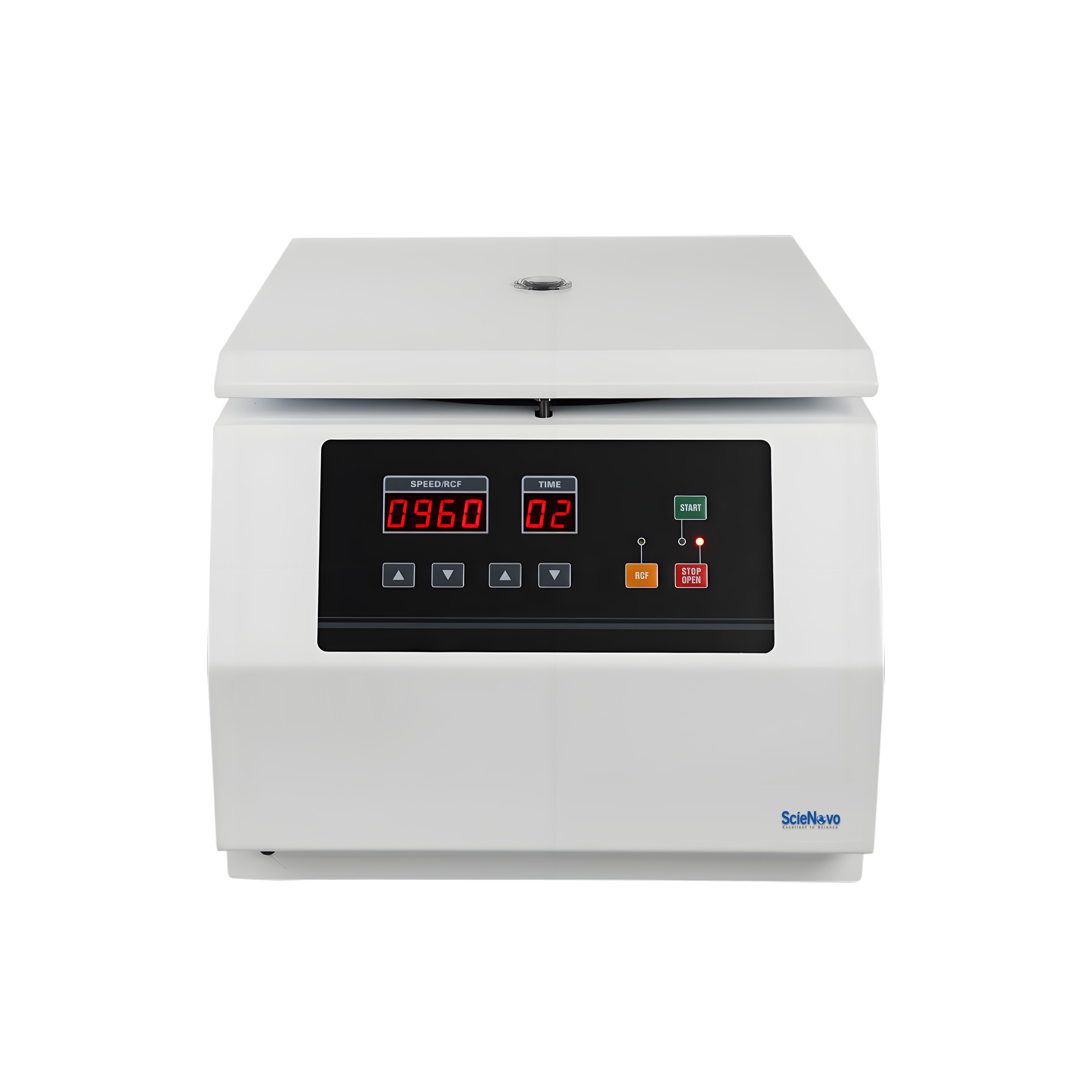

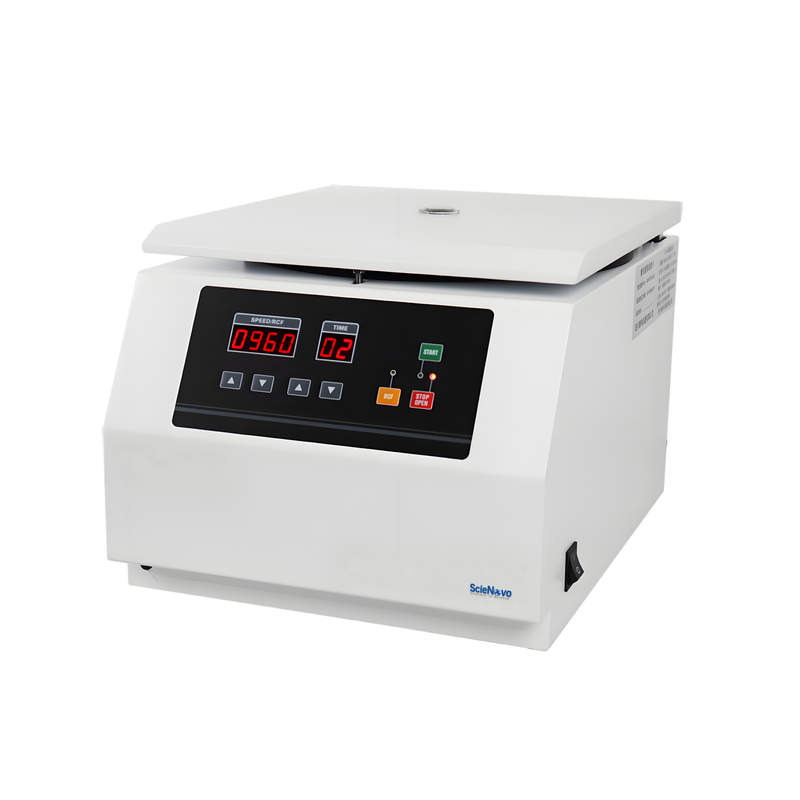

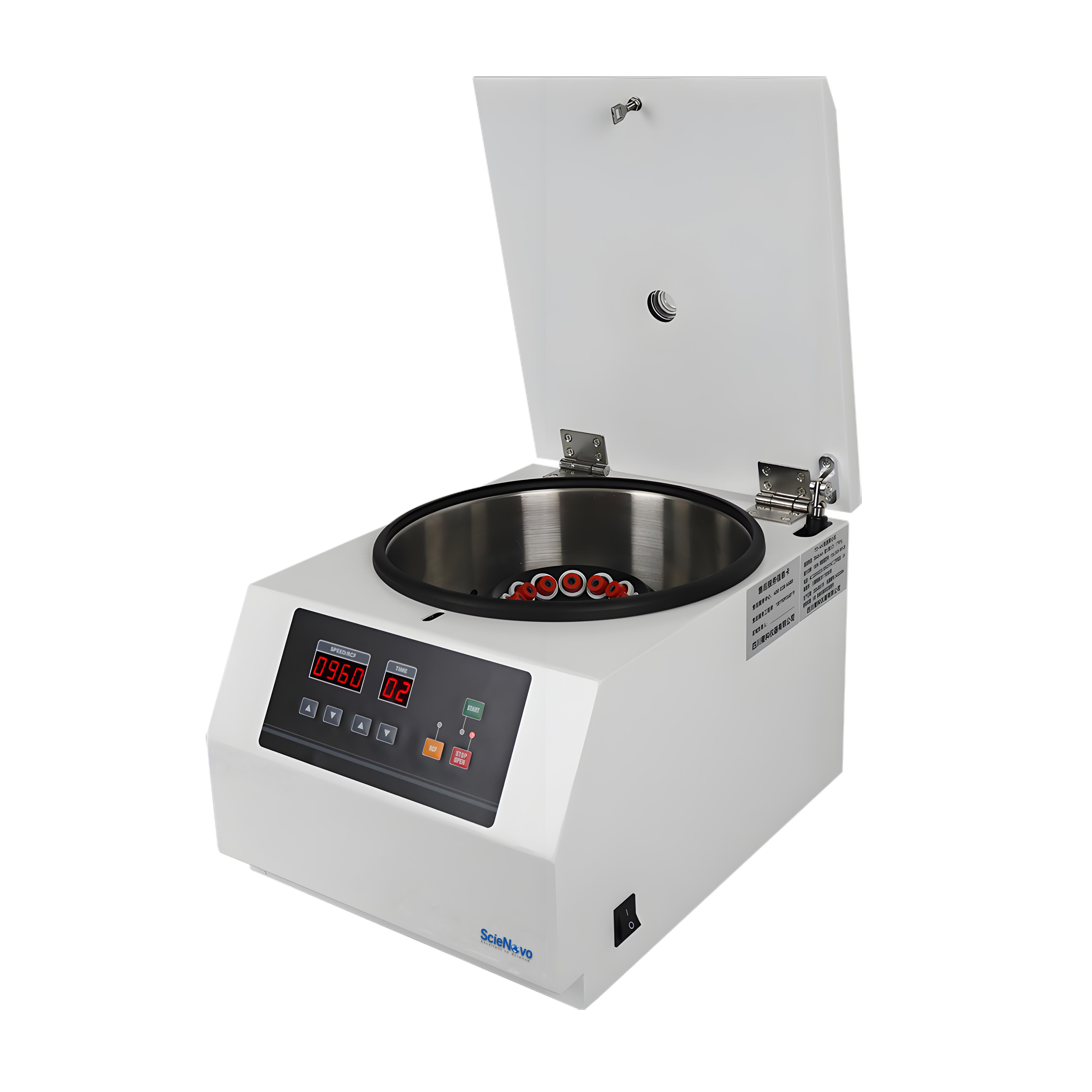

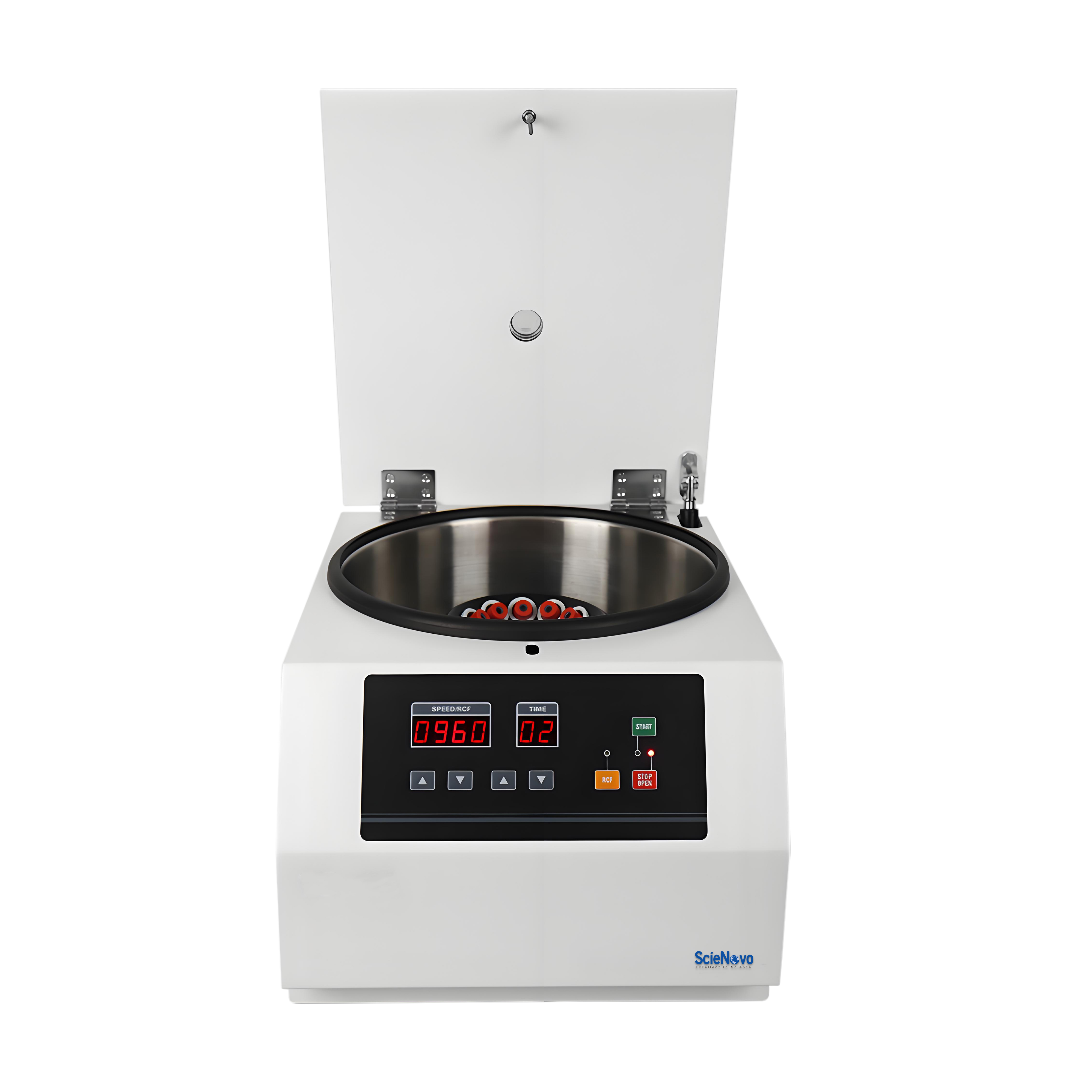

SN-TD-4Z
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Features |
LED screen shows RPM/RCF and Time
RCF can be set directly
1min to 99min timer range
User can reset parameters when rotor is spinning
Variable frequency motor drive
Electronic door lock to ensure safety
Steel housing;304 stainless steel chamber
Autoclavable aluminum alloy fixed angle rotor
Compatible with blood tube and 15ml/50ml tube
Can run 12 tubes at a time
Specification |
| Model | TD-4Z |
| Max Speed | 4200rpm |
| Max RCF | 2680xg |
| Max Capacity | 4x50ml;12x15ml tube/ blood tube/PRP tube |
| Speed Accuracy | ±20rpm |
| Time Setting | 1min～99min |
| Noise | ≤55dB(A) |
| Power Consumption | 200w |
| Dimension | 440x340x290mm |
| Weight | 17kg |
Centrifuge Rotor |
Model | Product Name | Capacity | Max Speed rpm | Max RCF xg |
No.1 | Angle Rotor | 12x15ml tube | 4200rpm | 2680xg |
No.2 | Angle Rotor | 12x20ml | ||
No.3 | Angle Rotor | 4x50ml |
