SN-L9
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Feature |
New optical platform, enabling the host machine with excellent optical properties, metering performance, low stray light and noise, high metering accuracy and stability.
Unique system of deuterium and tungsten lamp installation, facilitating the light source to automatically switch to the best position, and allowing users to operate the instrument, replace the light source and maintain the instrument more conveniently, accurately and safely.
Sophisticated hardware and software design, empowering the instrument with powerful spectral data processing and storage capabilities, and performing following functions, including automatic scanning of measured spectrum, multi-wavelength (1-3 λ) measurement, kinetic measurement, 1-3 curve fitting, 1-4 derivative spectra, spectra printing and storage and data analysis.

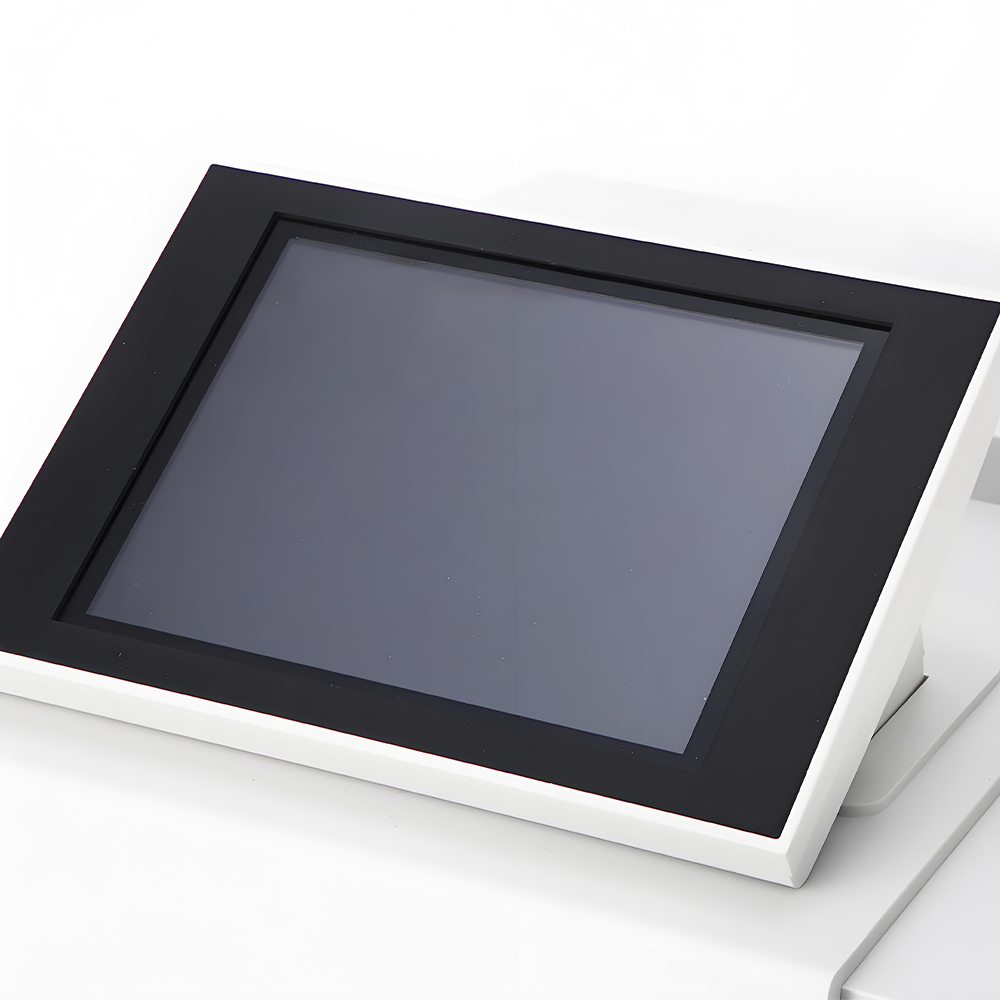

8-inch color touch-screen, with a good user-machine interface, easy-to- operate.
USB communication port
Specification |
Photometry | Double Beam |
Monochromator Type | Czerny-Turner |
Focal Length | 200mm |
Grating | 1600 lines/mm |
Detector | Silicon Photocell |
Wavelength Setting | 8-inch color touch-screen |
Wavelength Range | 190-1100nm |
Spectrum Bandwidth | 0.5nm,1nm,2nm,4nm,5nm |
Wavelength Accuracy | ±0.3nm（actual test ±0.2nm ） |
Wavelength Repeatability | ≤0.1nm |
Scanning Speed | Fast-Medium-Slow |
Stray Light | ≤0.02%T(at 220nm NaI, 360nm NaNo2 ) |
Photometric Range | 0.0-200.0% T |
Photometric Accuracy | ±0.3% T |
Photometric Repeatability | ≤0.15% T |
Baseline | ≤±0.0008 A(200-1090nm) |
Noise | 100%（T）noise≤0.1%(T) ， 0%（T）noise≤0.02%(T) |
Drifting | ≤0.004 Abs/h (250nm and 500nm after 2h warm up) |
COM Port | USB |
Light Source | Hamamatsu D2 lamp，Osram halogen tungsten lamp |
Power | AC220V±22V 50Hz±1Hz, 200W |
Packaging Size | 730mm X 630mm X 450mm 0.21M3 42.5kg |
Standrad Accessories | Operation manual 1 |
Glass cuvette 1cm 4pcs | |
Quartz cuvette 1cm 2pcs | |
Power cable 1 | |
Fuse 2pcs | |
Cuvette holder 10mm | |
Optional Accessories | UV WIN8 Spectrum data processing software |
Thermal Plotter | |
Cuvette holder 100mm | |
Cuvette holder 50mm |
