SN-L3
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Feature |
Legend series spectrophotometers adopt split beam survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices

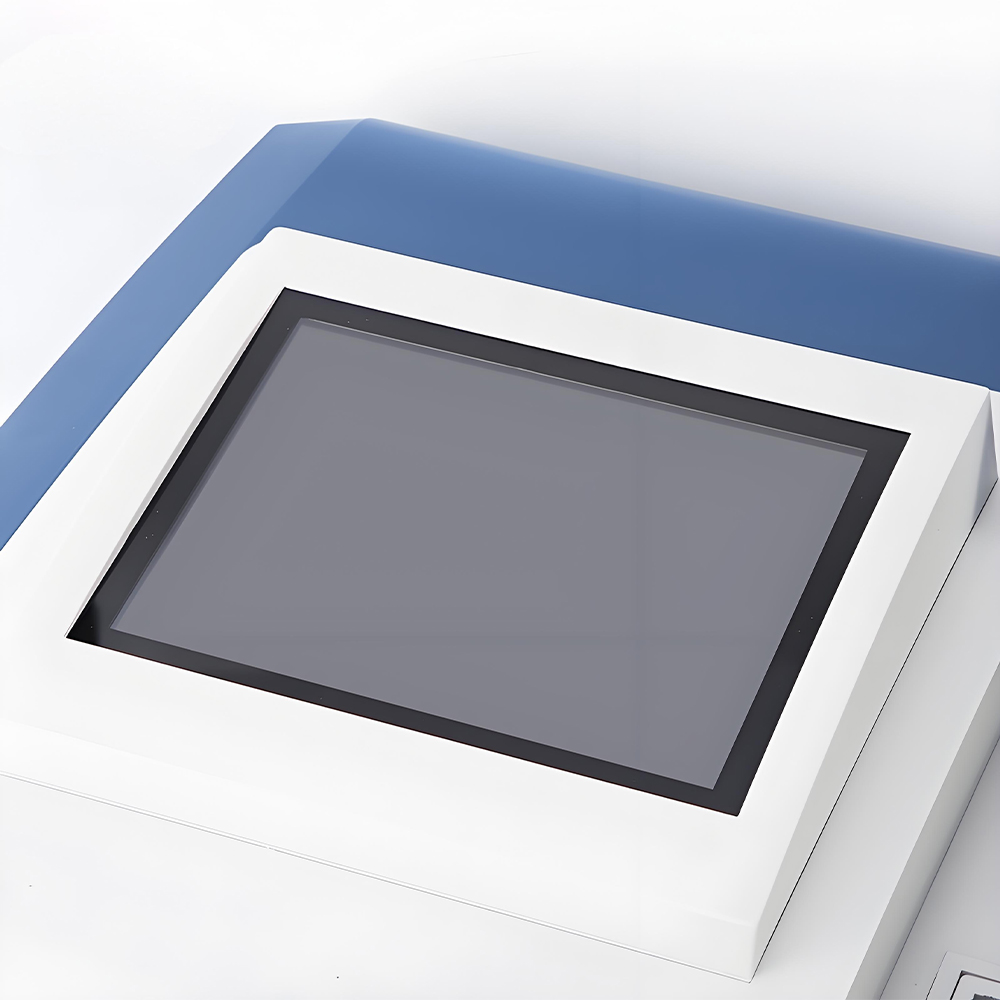

8-inch multi color touch-screen, cutting-edge user interface, powerful functions, and easy operation.

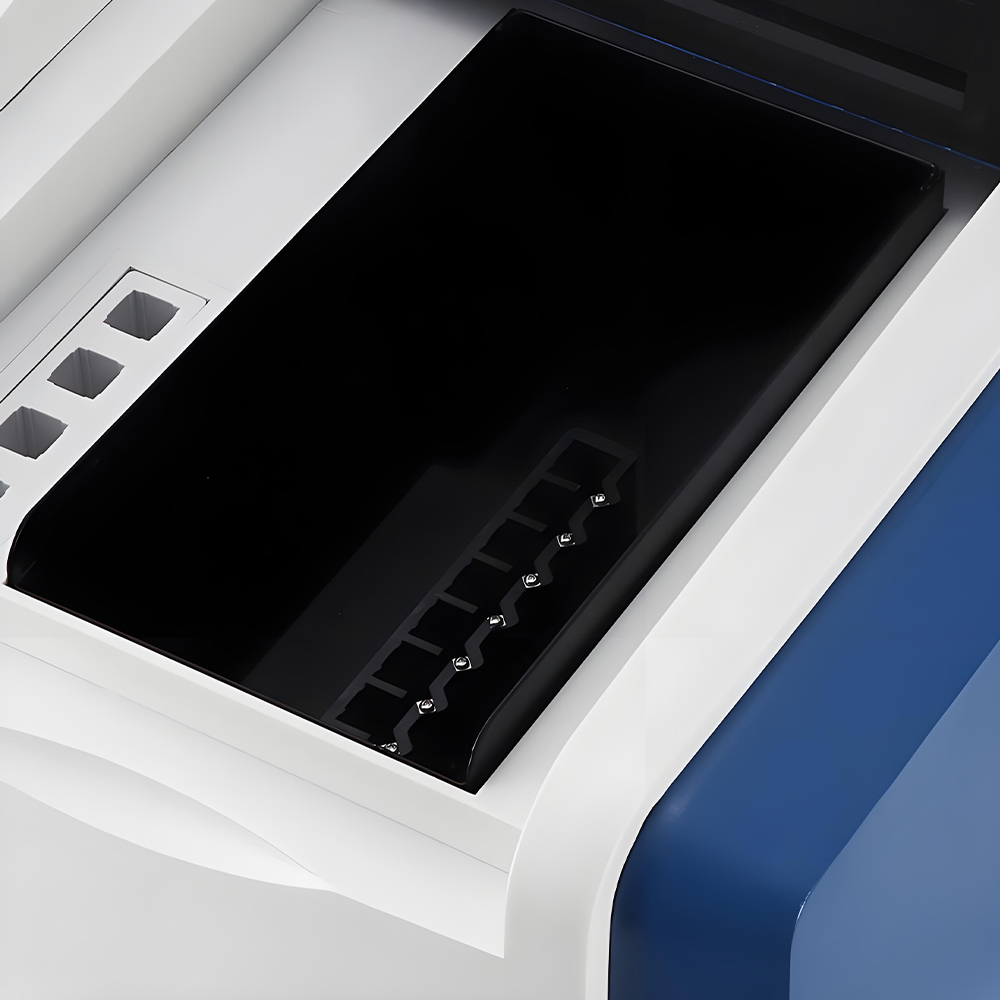

The automated 8 position cuvette holder facilitates the operation under each measurement mode.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
Full-spectrum scanning
Detailed spectrum scanningTime-based kinetics determination
GOTO λ
Linear regression
Concentration direct reading
Peak / Valley detecting
Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data.
Therefore, it follows a fast initialization when power on.
The instrument can relate to dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression
There is a USB port on the device, and UVwin8 software is optional to order. The device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
Specification |
Model | L3S | L3 |
Product Name | Split Beam VIS Spectrophotometer | |
Photometry | Single Beam | |
Monochromator Type | Czerny-Turner | |
Focal Length | 160mm | |
Grating | 1200 lines/mm | |
Detector | Silicon Photocell | |
Spectrum Bandwidth | 2nm | |
Wavelength Setting | 8-inch color touch-screen | |
Wavelength Range | 325-1100nm | |
Wavelength Accuracy | ±0.5nm | |
Wavelength Repeatability | ≤0.2nm | |
Photometric Range | 0.0-200.0%T | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | ≤0.2%T | |
Scanning Speed | Fast-Medium-Slow | / |
Baseline | ≤±0.002A（335-1090nm） | / |
Stray Light | ≤0.05%T(at 360nm NaNo2 ) | |
Noise | 100%（T）noise≤0.2%(T) ；0%（T）noise≤0.1%(T) | |
Drifting | ±0.0009 Abs/30min (at 500nm after 2h warm up) | |
Power | AC220V±22V 50Hz±1Hz,120W | |
Packaging Size | 710mm X 590mm X 505mm 0.21M | |
G.W. | 40kg | |
Standard Accessories | Operation manual 1pcs |
Glass cuvette 1cm 4pcs | |
Power cable 1 | |
Fuse 2pcs | |
Optional Accessories | Thermal printer |
Cuvette holder 50mm | |
Cuvette holder 100mm | |
UV WIN8 Spectrum data processing software |
Feature |
Legend series spectrophotometers adopt split beam survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices
8-inch multi color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
The automated 8 position cuvette holder facilitates the operation under each measurement mode.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
Full-spectrum scanning
Detailed spectrum scanningTime-based kinetics determination
GOTO λ
Linear regression
Concentration direct reading
Peak / Valley detecting
Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data.
Therefore, it follows a fast initialization when power on.
The instrument can relate to dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression
There is a USB port on the device, and UVwin8 software is optional to order. The device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.
Specification |
Model | L3S | L3 |
Product Name | Split Beam VIS Spectrophotometer | |
Photometry | Single Beam | |
Monochromator Type | Czerny-Turner | |
Focal Length | 160mm | |
Grating | 1200 lines/mm | |
Detector | Silicon Photocell | |
Spectrum Bandwidth | 2nm | |
Wavelength Setting | 8-inch color touch-screen | |
Wavelength Range | 325-1100nm | |
Wavelength Accuracy | ±0.5nm | |
Wavelength Repeatability | ≤0.2nm | |
Photometric Range | 0.0-200.0%T | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | ≤0.2%T | |
Scanning Speed | Fast-Medium-Slow | / |
Baseline | ≤±0.002A（335-1090nm） | / |
Stray Light | ≤0.05%T(at 360nm NaNo2 ) | |
Noise | 100%（T）noise≤0.2%(T) ；0%（T）noise≤0.1%(T) | |
Drifting | ±0.0009 Abs/30min (at 500nm after 2h warm up) | |
Power | AC220V±22V 50Hz±1Hz,120W | |
Packaging Size | 710mm X 590mm X 505mm 0.21M | |
G.W. | 40kg | |
Standard Accessories | Operation manual 1pcs |
Glass cuvette 1cm 4pcs | |
Power cable 1 | |
Fuse 2pcs | |
Optional Accessories | Thermal printer |
Cuvette holder 50mm | |
Cuvette holder 100mm | |
UV WIN8 Spectrum data processing software |
