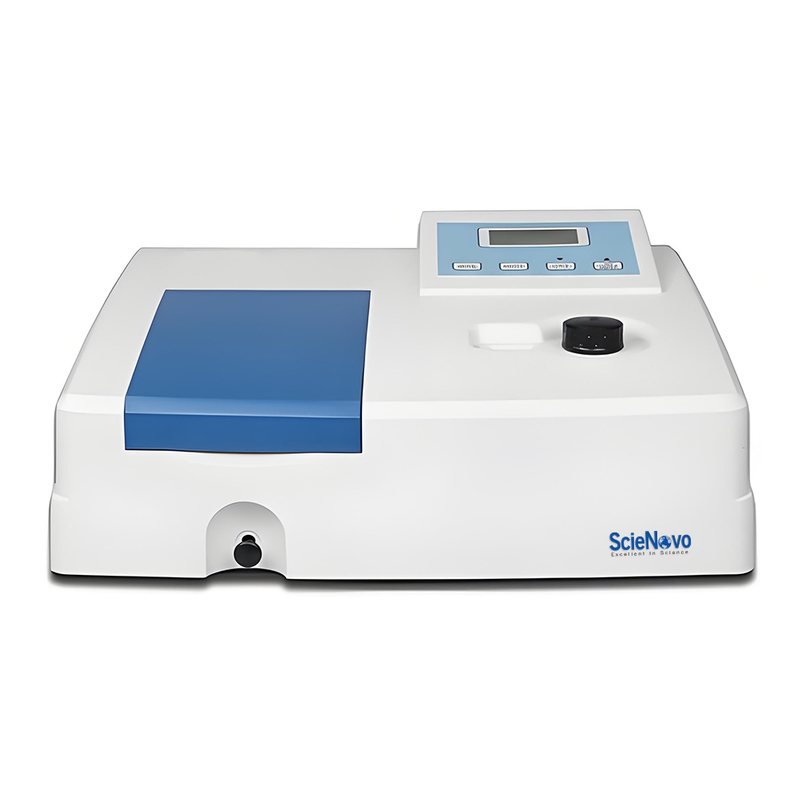

SN-721G
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Feature |
High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high-quality accuracy and precision.
Backlit LCD display for an easy readout.
Automatic 0A and 100%T.
Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
Direct concentration read-out and concentration factor setting function.
Large sample compartment, for 5 - 100mm path length cuvettes with optional holders.
Easy to change the halogen lamp or deuterium lamp by the user himself.
Specification |
Model | 721G | 721G-100 | 722G |
Product Name | VIS Spectrophotometer | ||
Photometry | Single Beam | ||
Monochromator Type | Czerny-Turner | ||
Detector | Silicon Photocell | ||
Wavelength Setting | Manual Turn Knob | ||
Wavelength Range | 340-1000nm | 325-1000nm | |
Wavelength Accuracy | ±2nm | ||
Wavelength Repeatability | ≤1nm | ||
Spectrum Bandwidth | 5nm | ||
Stray Light | ≤0.5%T | ||
Photometric Range | 0-100.0%T | ||
Photometric Accuracy | ±0.5%T | ||
Photometric Repeatability | ≤0.2%T | ||
Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) | ||
Drifting | ±0.5 %T/3min | ||
Cuvette Holder Size | 50mm | 100mm | 50mm |
Power | AC220V±22V 50Hz±1Hz,50W | ||
Packaging Size | 560mmX490mmX285mm 0.08M3 | ||
G.W. | 14kg | ||
Standrad Accessories | Operation manual 1pcs |
Glass cuvette 1cm 4pcs | |
Quartz cuvette 1cm 2pcs | |
Power cable 1 | |
Fuse 2pcs | |
Optional Accessories | Thermal printer |
Cuvette holder 50mm | |
Cuvette holder 100mm (721G-100 only ) | |
UV WIN7 software |
