SN-752N
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Application |
752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific research and other applications.
Feature |
High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high-quality accuracy and precision.
Automatic 0A and 100%T.
Direct concentration read-out and concentration factor setting function.

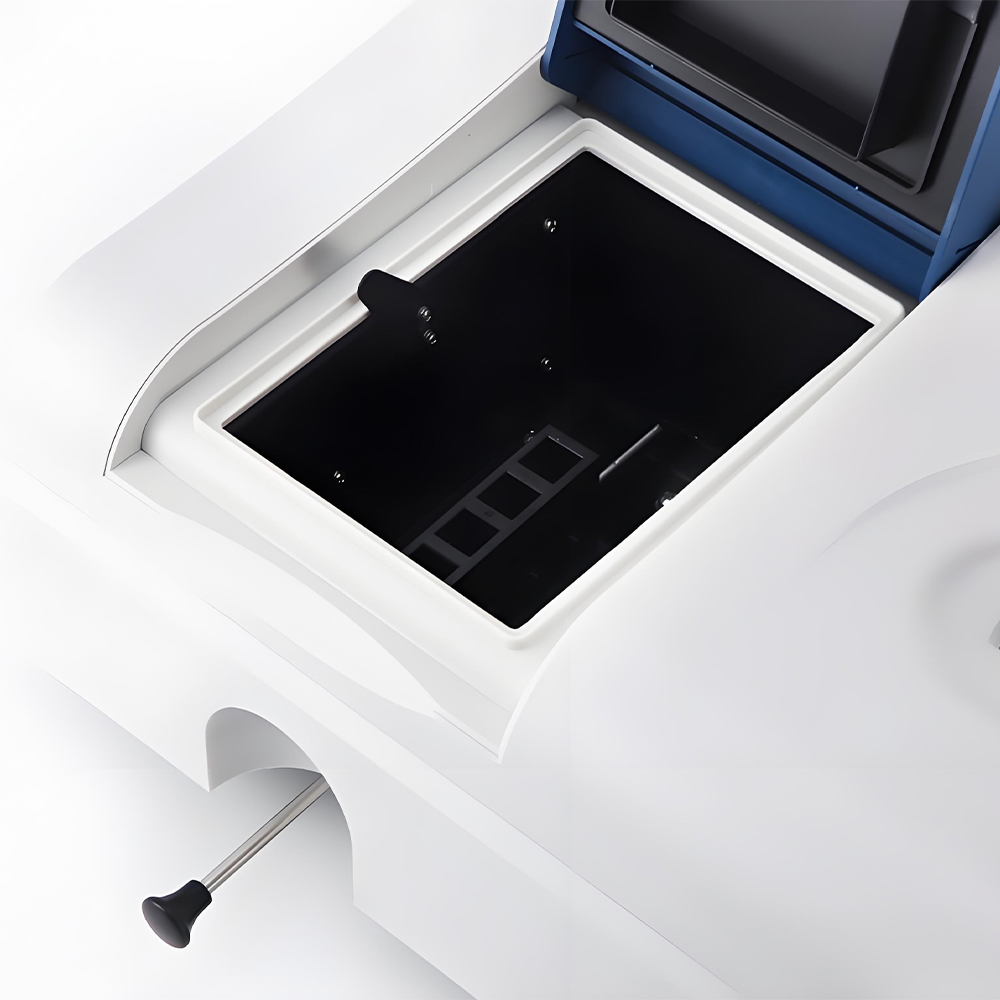

Large sample compartment, for 5 - 50mm path length cuvettes with optional holders.
Easy to change the halogen lamp or deuterium lamp by the user himself.
Specification |
Model | 752G | 752N | 752N Plus |
Product Name | UV-VIS Spectrophotometer | ||
Wavelength Setting | / | / | 7-inch color touch-screen |
Photometry | Single Beam | ||
Monochromator Type | Czerny-Turner | ||
Focal Length | / | 160mm | 160mm |
Grating | / | 1200 lines/mm | 1200 lines/mm |
Detector | Silicon Photocell | ||
Wavelength Setting | Manual Turn Knob | ||
Wavelength Range | 200-1000nm | ||
Wavelength Accuracy | ±2nm | ||
Wavelength Repeatability | ≤1nm | ||
Spectrum Bandwidth | 4nm | 2nm | |
Stray Light | ≤0.3%T (at 220nm NaI, 360nm NaNo2 ) | ≤0.1%T(at 220nm NaI, 360nm NaNo2 ) | |
Photometric Range | 0-100.0%T | ||
Photometric Accuracy | ±0.5%T | ||
Photometric Repeatability | ≤0.2%T | ||
Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) | ||
Cuvette Holder Size | 50mm | 10mm | 10mm |
Drifting | ±0.5 %T/3min | / | / |
COM Port | RS232 | RS232 port & USB port | USB |
Power | AC220V±22V 50Hz±1Hz, 130W | AC220V±22V 50Hz±1Hz,80W | AC220V±22V 50Hz±1Hz, 120W |
Packaging Size | 560mmX490mmX285mm 0.08M3 | 575mmX460mmX340mm 0.1M 3 | 580mmX460mmX345mm 0.1M 3 |
G.W. | 16kg | 16.5kg | 16.5kg |
Model | 752G | 752N | 752N Plus | |
Standard Accessories | User manual | 1pc | 1pc | 1pc |
Glass cuvette 1cm | / | 4pcs | 4pcs | |
Quartz cuvette 1cm | 2pcs | 2pcs | 2pcs | |
Power cable | 1pc | 1pc | 1pc | |
Fuse | 2pcs | 2pcs | 2pcs | |
Optional Accessories | Thermal printer | Thermal printer | Thermal printer | Thermal printer |
50mm cuvette holder | 50mm cuvette holder | 50mm cuvette holder | 50mm cuvette holder | |
UV WIN7 software | UV WIN7 software | Spectrum Data Processing Software | Spectrum Data Processing Software | |
Application |
752N UV-VIS spectrophotometer adopts advanced proportional double beam optical system and low noise circuit design, with excellent reliability and stability. It can meet the needs of daily analysis, scientific research and other applications.
Feature |
High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high-quality accuracy and precision.
Automatic 0A and 100%T.
Direct concentration read-out and concentration factor setting function.
Large sample compartment, for 5 - 50mm path length cuvettes with optional holders.
Easy to change the halogen lamp or deuterium lamp by the user himself.
Specification |
Model | 752G | 752N | 752N Plus |
Product Name | UV-VIS Spectrophotometer | ||
Wavelength Setting | / | / | 7-inch color touch-screen |
Photometry | Single Beam | ||
Monochromator Type | Czerny-Turner | ||
Focal Length | / | 160mm | 160mm |
Grating | / | 1200 lines/mm | 1200 lines/mm |
Detector | Silicon Photocell | ||
Wavelength Setting | Manual Turn Knob | ||
Wavelength Range | 200-1000nm | ||
Wavelength Accuracy | ±2nm | ||
Wavelength Repeatability | ≤1nm | ||
Spectrum Bandwidth | 4nm | 2nm | |
Stray Light | ≤0.3%T (at 220nm NaI, 360nm NaNo2 ) | ≤0.1%T(at 220nm NaI, 360nm NaNo2 ) | |
Photometric Range | 0-100.0%T | ||
Photometric Accuracy | ±0.5%T | ||
Photometric Repeatability | ≤0.2%T | ||
Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) | ||
Cuvette Holder Size | 50mm | 10mm | 10mm |
Drifting | ±0.5 %T/3min | / | / |
COM Port | RS232 | RS232 port & USB port | USB |
Power | AC220V±22V 50Hz±1Hz, 130W | AC220V±22V 50Hz±1Hz,80W | AC220V±22V 50Hz±1Hz, 120W |
Packaging Size | 560mmX490mmX285mm 0.08M3 | 575mmX460mmX340mm 0.1M 3 | 580mmX460mmX345mm 0.1M 3 |
G.W. | 16kg | 16.5kg | 16.5kg |
Model | 752G | 752N | 752N Plus | |
Standard Accessories | User manual | 1pc | 1pc | 1pc |
Glass cuvette 1cm | / | 4pcs | 4pcs | |
Quartz cuvette 1cm | 2pcs | 2pcs | 2pcs | |
Power cable | 1pc | 1pc | 1pc | |
Fuse | 2pcs | 2pcs | 2pcs | |
Optional Accessories | Thermal printer | Thermal printer | Thermal printer | Thermal printer |
50mm cuvette holder | 50mm cuvette holder | 50mm cuvette holder | 50mm cuvette holder | |
UV WIN7 software | UV WIN7 software | Spectrum Data Processing Software | Spectrum Data Processing Software | |
