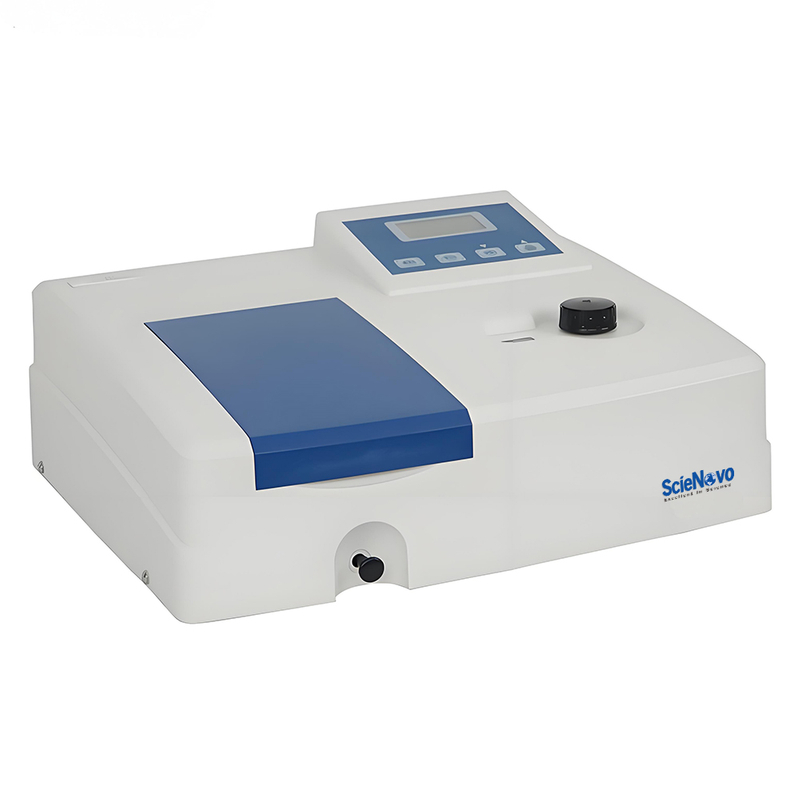

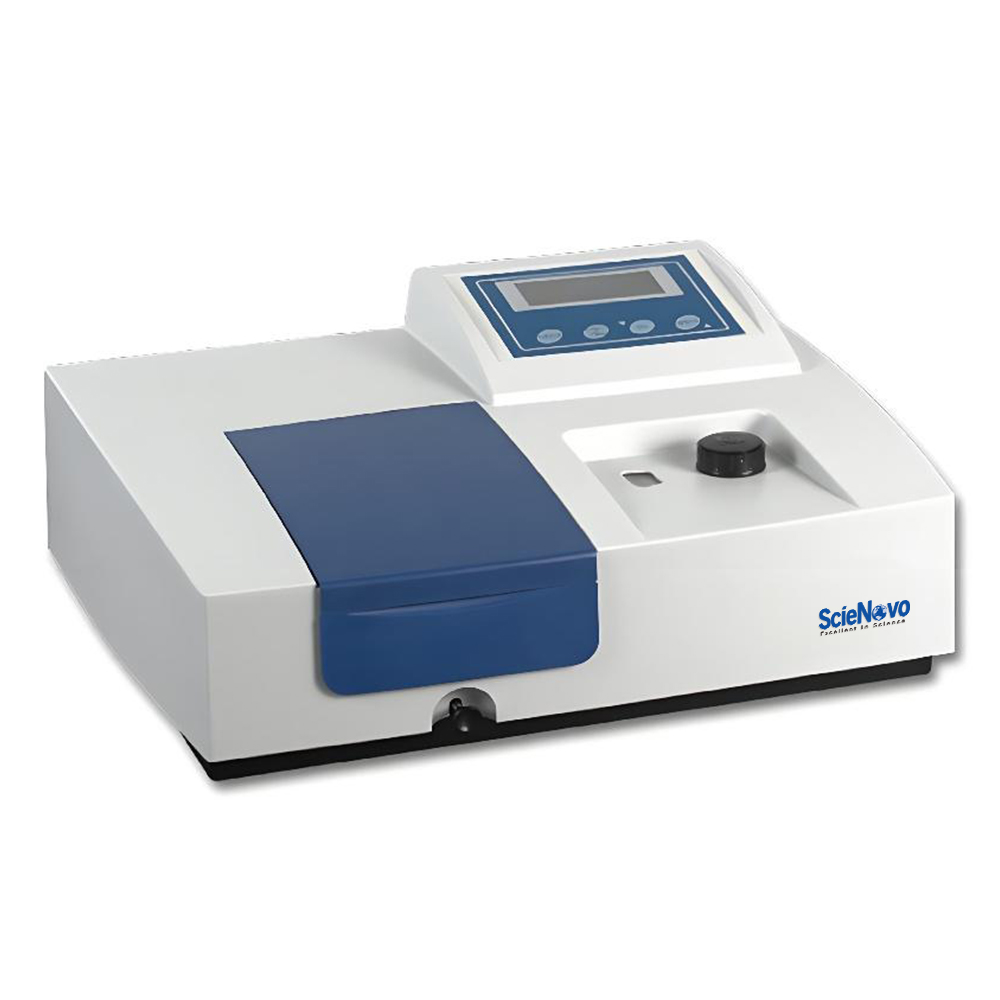

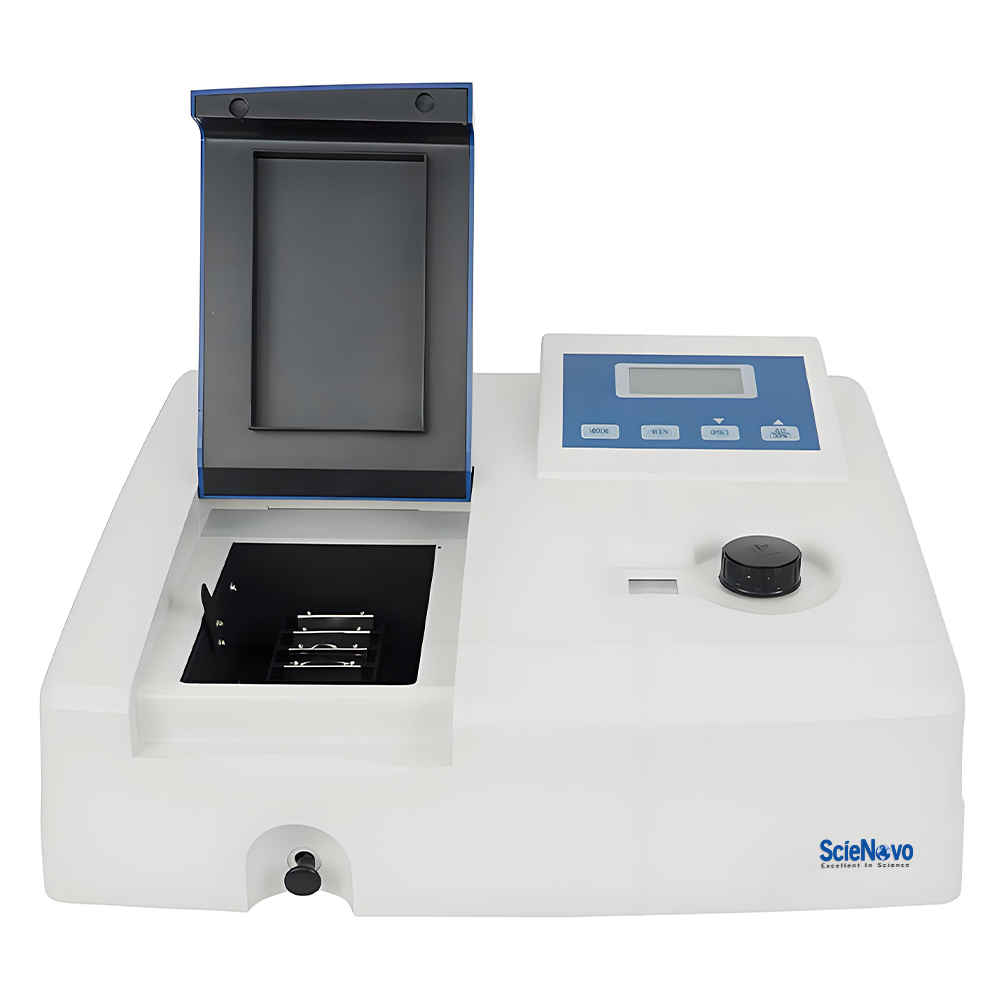

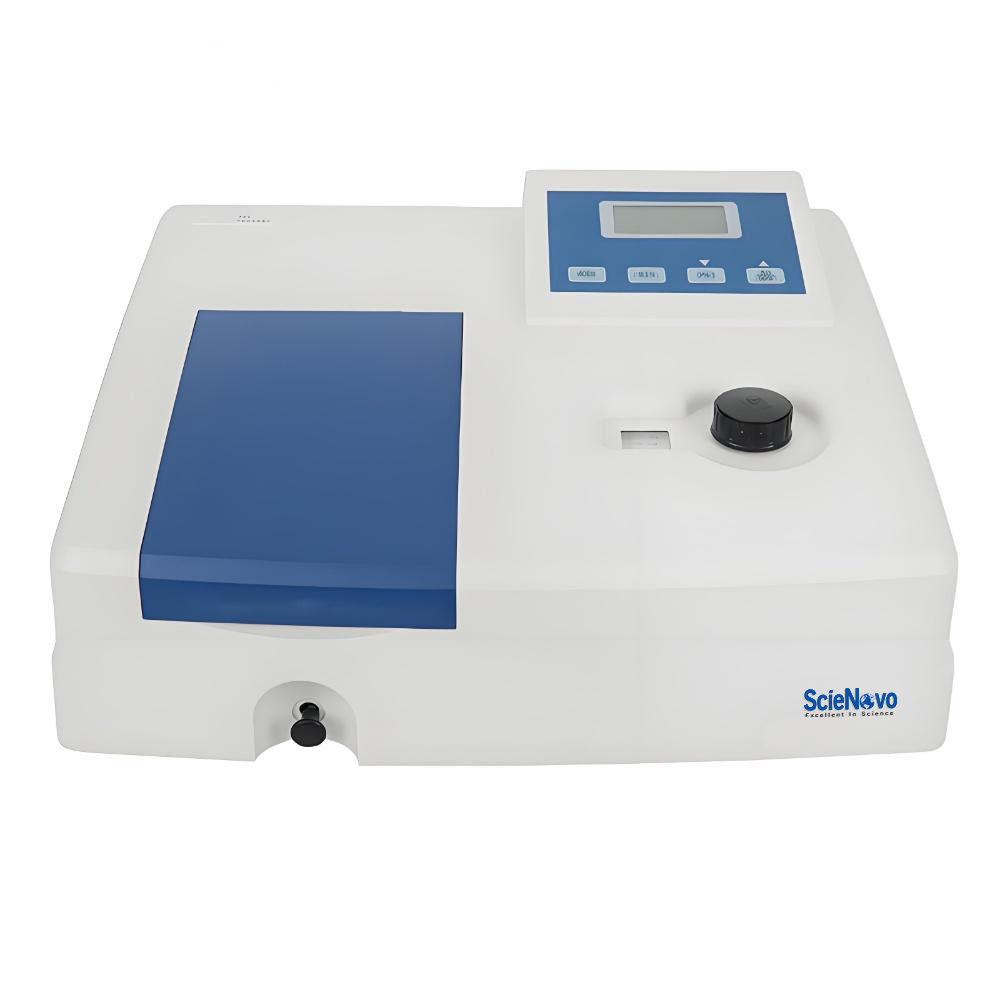

SN-721N
scienovo
2 Years
OEM Service
| Quantity: | |
|---|---|
Feature |
The holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.
7-inch multi color touch-screen, good human-computer interface. (752N Plus and 722N)
Linear regression method and coefficient method are added to the concentration test method.
USB interface is added, and large capacity memory can store 30 concentration curves.
Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of 0% T and 100% T, concentration factor setting and concentration direct reading.
High accuracy, Good Reproducibility and Stability of Measurement Readings.
Automatic light gate technology, No need blackbody, to protect the photoelectric sensor
Specification |
Model | 721N | 722N |
Product Name | VIS Spectrophotometer | |
Photometry | Single Beam | |
Monochromator Type | Czerny-Turner | |
Focal Length | 160mm | |
Grating | 1200 lines/mm | |
Detector | Silicon Photocell | |
Wavelength Setting | Manual Turn Knob | |
Wavelength Range | 340-1000nm | 325-1000nm |
Wavelength Accuracy | ±2nm | |
Wavelength Repeatability | ≤1nm | |
Spectrum Bandwidth | 5nm | |
Stray Light | ≤0.1(at 360nm NaNo2 ) | |
Photometric Range | 0-100.0%T | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | ≤0.2%T | |
Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) | |

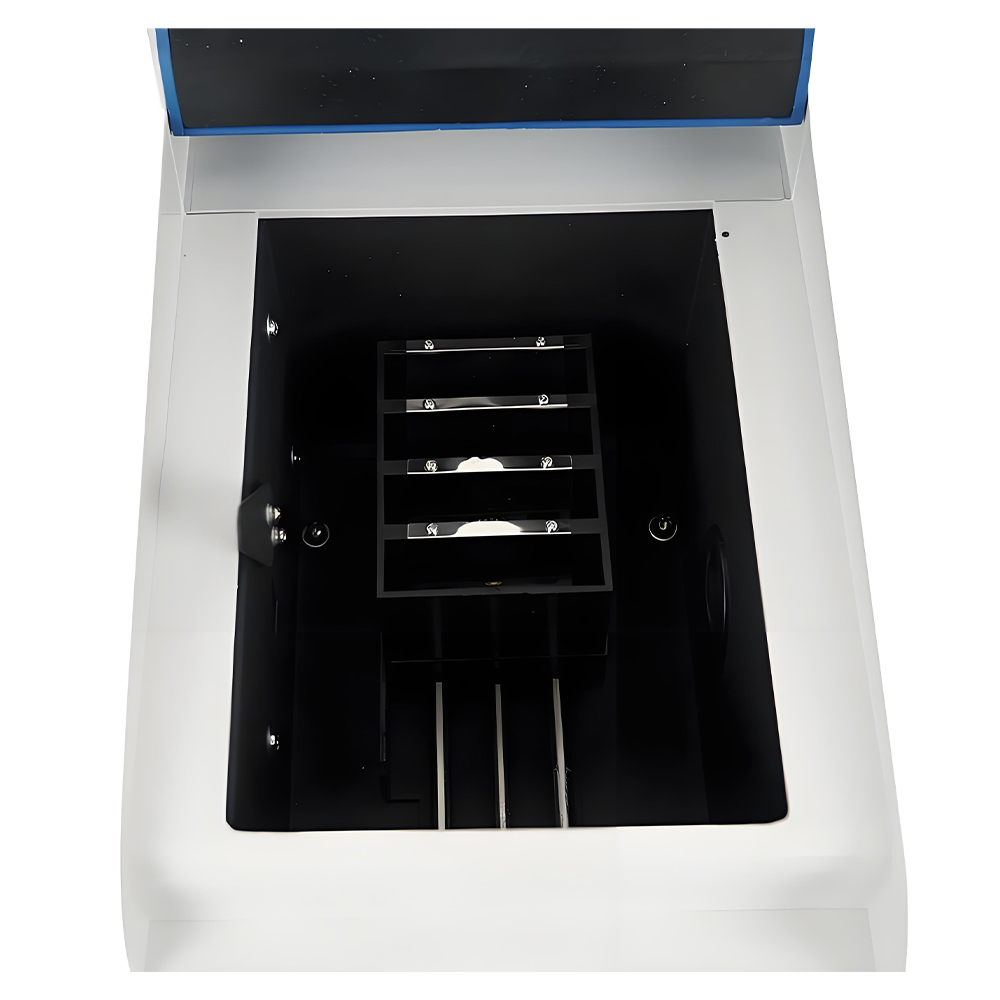

Cuvette Holder Size | 10mm | |
Power | AC220V±22V 50Hz±1Hz,80W | |
Packaging Size | 580mmX460mmX345mm 0.1M 3 | |
G.W. | 12.5kg | |
Standard Accessories | Operation manual 1pcs |

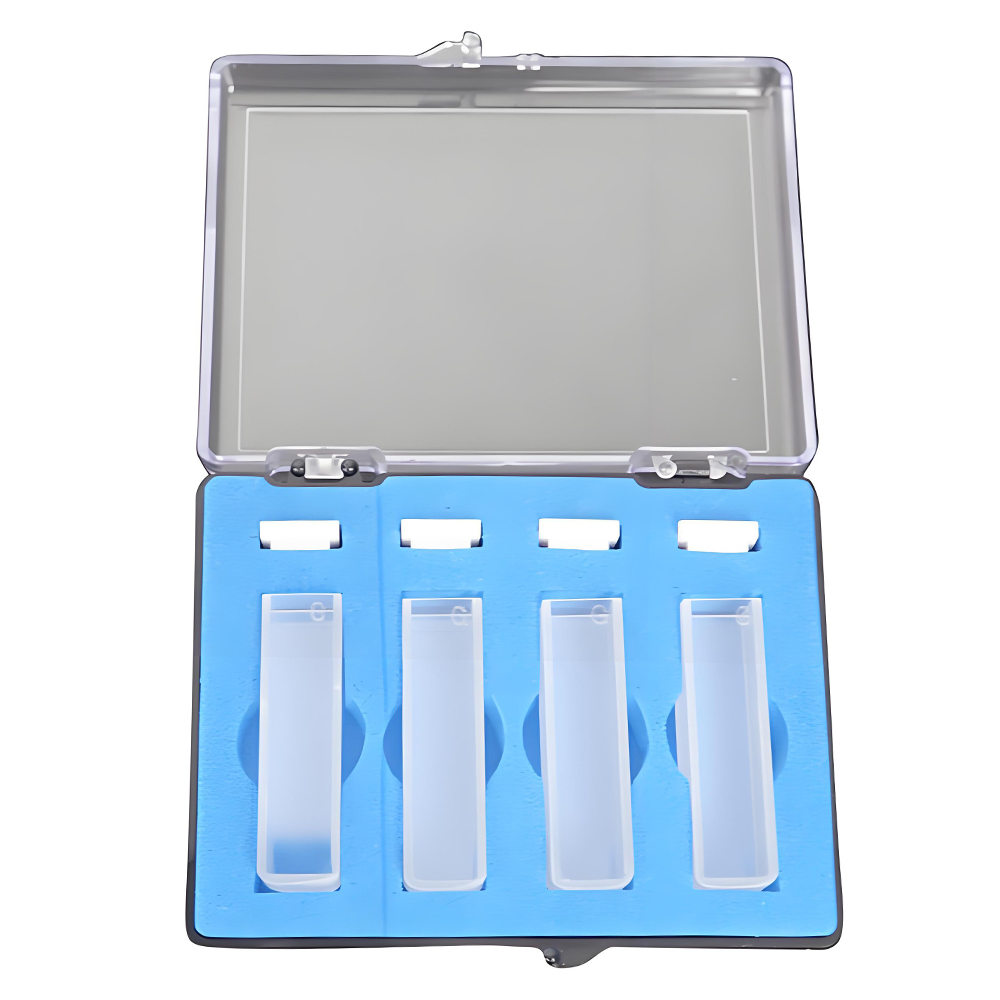

Glass cuvette 1cm 4pcs | |
Power cable 1 | |
Fuse 2pcs | |
Optional Accessories | Thermal printer |
Cuvette holder 50mm | |
Spectrum Data Processing Software |
Feature |
The holographic blazed grating monochromator has the advantages of high wavelength accuracy, good monochromaticity and low stray light.
7-inch multi color touch-screen, good human-computer interface. (752N Plus and 722N)
Linear regression method and coefficient method are added to the concentration test method.
USB interface is added, and large capacity memory can store 30 concentration curves.
Adopt microcomputer measurement system, with high conversion accuracy of T-A, automatic adjustment of 0% T and 100% T, concentration factor setting and concentration direct reading.
High accuracy, Good Reproducibility and Stability of Measurement Readings.
Automatic light gate technology, No need blackbody, to protect the photoelectric sensor
Specification |
Model | 721N | 722N |
Product Name | VIS Spectrophotometer | |
Photometry | Single Beam | |
Monochromator Type | Czerny-Turner | |
Focal Length | 160mm | |
Grating | 1200 lines/mm | |
Detector | Silicon Photocell | |
Wavelength Setting | Manual Turn Knob | |
Wavelength Range | 340-1000nm | 325-1000nm |
Wavelength Accuracy | ±2nm | |
Wavelength Repeatability | ≤1nm | |
Spectrum Bandwidth | 5nm | |
Stray Light | ≤0.1(at 360nm NaNo2 ) | |
Photometric Range | 0-100.0%T | |
Photometric Accuracy | ±0.5%T | |
Photometric Repeatability | ≤0.2%T | |
Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) | |
Cuvette Holder Size | 10mm | |
Power | AC220V±22V 50Hz±1Hz,80W | |
Packaging Size | 580mmX460mmX345mm 0.1M 3 | |
G.W. | 12.5kg | |
Standard Accessories | Operation manual 1pcs |
Glass cuvette 1cm 4pcs | |
Power cable 1 | |
Fuse 2pcs | |
Optional Accessories | Thermal printer |
Cuvette holder 50mm | |
Spectrum Data Processing Software |
