SN-EU2200
Scienovo
CE
2 Years
OEM
| Quantity: | |
|---|---|

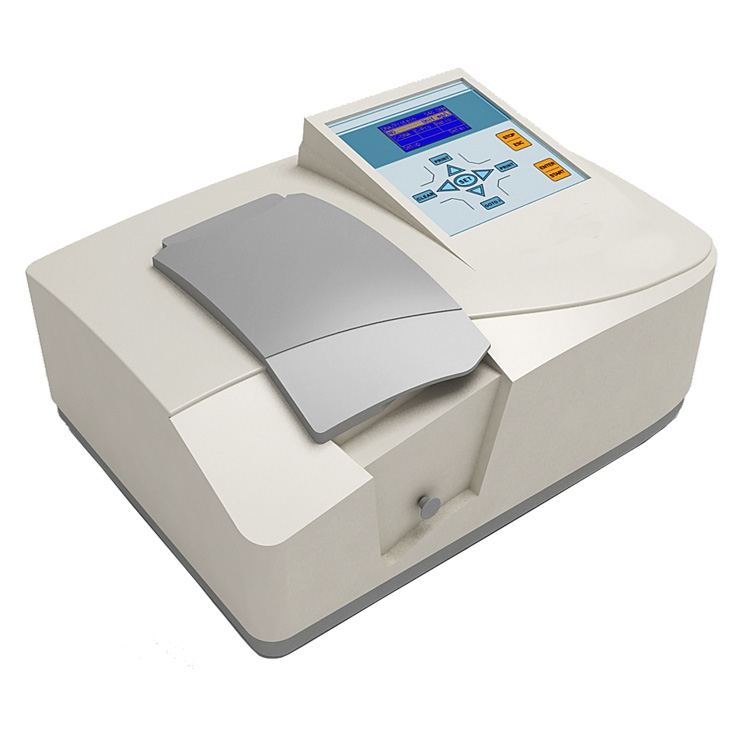

2200 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard.
They are widely used in colleges and quantitative analysis lab.
Function |
Photometric: T%, Abs
Quantitative: Standard Curve
System Utility
WL Scan (Spectrum Scan) (PC)
Time Scan (Kinetics) (PC)
DNA/Protein Test (PC)
Multi-WL Test (PC)
Feature |
Small fine design, space saving
The excellent optical and electric system
Low noise and Low stray light
Large LCD display (128*64 Dots), can display curve
High quality grating, detector and lamps
Data and Curve can be stored in real-time
Auto setting WL, auto Blank
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assure durability
Specification |
Wavelength Range | 190-1100nm |
Spectral Bandwidth | 4.0nm/2.0nm |
Optical System | Single Beam, Blazed Holographic Grating (1200 lines/mm) |
Wavelength Accuracy | ±1.0nm |
Wavelength Repeatability | ≤0.3nm |
Wavelength Setting | Auto, Resolution 0.1nm |
Photometric Range | 0~200%T, -0.3~3A, 0~9999C |
Photometric Accuracy | ±0.003A (0~0.5A), ±0.005A (0.5~1A), ±0.5%T (0~100%T) |
Photometric Repeatability | ≤0.002A (0~0.5A), ≤0.003A (0.5~1A), ≤0.3%T (0~100%T) |
Stray Light | ≤0.2%T(220/360nm) |
Scan Speed | High, Medium, Low. Max.1000nm/minute |
Baseline Flatness | ±0.004A |
Stability | ±0.002A/h (500nm,0A) |
Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T) |
Sample Compartment | Accommodate 5-100mm Pathlength Cuvette |
Detector | Silicon Photodiode |
Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) |
Display | Graphic LCD (128x64 Dots) |
Keypad | 11-key Membranes Keypad |
Output Port | USB Port & RS232 Port |
Printer | Mini Serial Printer; PC Printer |
PC Software | Optional PC Scanning Software |
Power Requirements | AC 90-250V，50/60Hz |
Dimension | 431x318x195mm |
Weight | 10kg |
