SN-300G
scienovo
1 Years
OEM Service
| Quantity: | |
|---|---|
Features |
Compact structure, high integration, easy to use, saving laboratory space.
Stainless steel gas tank, safe and reliable, can replace the laboratory cylinder.
Hydrogen Gas part: automatic anti-alkali, flow automatic tracking, three stage filters.
Nitrogen Gas part: automatic anti-alkali, flow automatic tracking, three stage filters.
Air part: the use of oil-free compressors, stainless steel gas tank, two regulator, three high-precision filter, automatic drainage of the protection measures.
Specification |

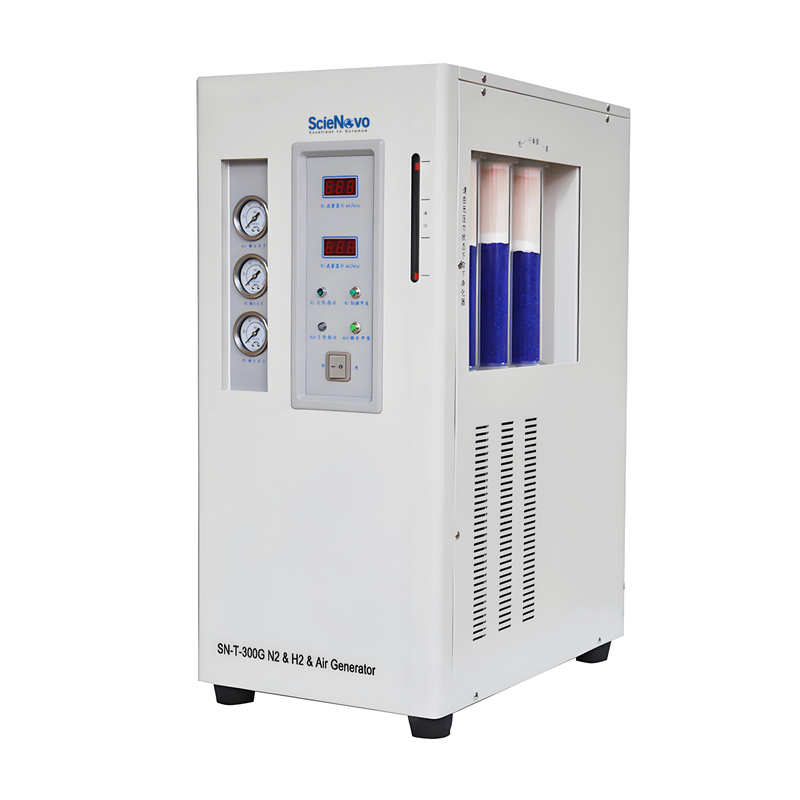

Product Name | Nitrogen & Hydrogen & Air Generator (with oil-free compressor) |
Model | SN-300G |
Item | Specification |
Hydrogen Purity | ﹥99.999％ |
Nitrogen Purity | ﹥99.997％ |
Air quality | Dry, No Oil, Three Clean Gas |
H2 Output Flow | 0-300ml/min |
N2 Output Flow | 0-300ml/min |
Air Output Flow | 0-2000ml/min |
Output Pressure | Hydrogen Gas：0-0.4Mpa (Factory setting0.3Mpa) Nitrogen Gas：0-0.5 Mpa (Factory setting0.4Mpa) Air：0-0.5 Mpa (Factory setting0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 750W |
Environment Condition | Environment Temperature：10-40℃ ； Relative humidity:≤85％ No large amounts of dust and corrosive gases. |
Exterior Dimension | 300﹡455﹡665mm |
Net Weight | 50Kg |
Features |
Compact structure, high integration, easy to use, saving laboratory space.
Stainless steel gas tank, safe and reliable, can replace the laboratory cylinder.
Hydrogen Gas part: automatic anti-alkali, flow automatic tracking, three stage filters.
Nitrogen Gas part: automatic anti-alkali, flow automatic tracking, three stage filters.
Air part: the use of oil-free compressors, stainless steel gas tank, two regulator, three high-precision filter, automatic drainage of the protection measures.
Specification |
Product Name | Nitrogen & Hydrogen & Air Generator (with oil-free compressor) |
Model | SN-300G |
Item | Specification |
Hydrogen Purity | ﹥99.999％ |
Nitrogen Purity | ﹥99.997％ |
Air quality | Dry, No Oil, Three Clean Gas |
H2 Output Flow | 0-300ml/min |
N2 Output Flow | 0-300ml/min |
Air Output Flow | 0-2000ml/min |
Output Pressure | Hydrogen Gas：0-0.4Mpa (Factory setting0.3Mpa) Nitrogen Gas：0-0.5 Mpa (Factory setting0.4Mpa) Air：0-0.5 Mpa (Factory setting0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 750W |
Environment Condition | Environment Temperature：10-40℃ ； Relative humidity:≤85％ No large amounts of dust and corrosive gases. |
Exterior Dimension | 300﹡455﹡665mm |
Net Weight | 50Kg |
