SN-1L
scienovo
1 Years
OEM Service
| Quantity: | |
|---|---|
Features |
Improved double cathode stainless steel electrolytic separation tank, electrolytic nitrogen, oxygen discharge, electrolyte circulation.
Electrolysis separation cell electrolytic area, low temperature, big gas production, nitrogen purity is higher.
Unique anti-back fluid device, to ensure that the instrument not back to the liquid phenomenon.
With stable and power off after the automatic closure of the air function.
Adopt advanced switching power supply to improve electrolytic separation efficiency.
Specification |

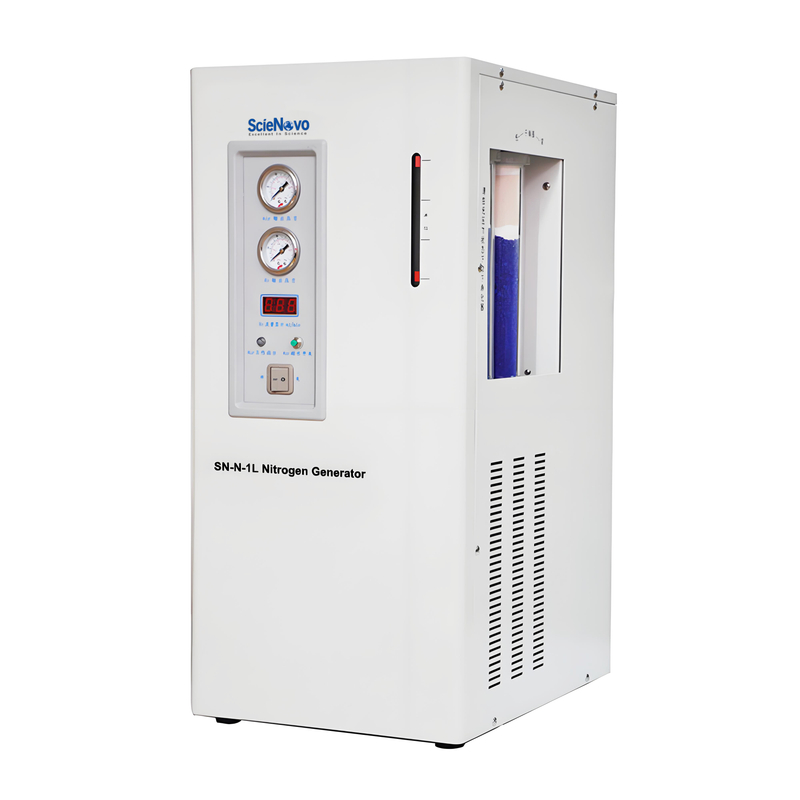

Product Name | Nitrogen Generator |
Model | SN-1L |
Item | Specification |
N2 Purity | ﹥99.997％ |
N2 Output Flow | 0-1L/min |
N2 Output Pressure | 0-0.5Mpa (Factory setting 0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 185W |
Environment Condition | Environment Temperature：10-40℃ ；Relative humidity:《85％ |
Exterior Dimension | 470﹡300﹡365mm |
Net Weight | 30Kg |
Features |
Improved double cathode stainless steel electrolytic separation tank, electrolytic nitrogen, oxygen discharge, electrolyte circulation.
Electrolysis separation cell electrolytic area, low temperature, big gas production, nitrogen purity is higher.
Unique anti-back fluid device, to ensure that the instrument not back to the liquid phenomenon.
With stable and power off after the automatic closure of the air function.
Adopt advanced switching power supply to improve electrolytic separation efficiency.
Specification |
Product Name | Nitrogen Generator |
Model | SN-1L |
Item | Specification |
N2 Purity | ﹥99.997％ |
N2 Output Flow | 0-1L/min |
N2 Output Pressure | 0-0.5Mpa (Factory setting 0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 185W |
Environment Condition | Environment Temperature：10-40℃ ；Relative humidity:《85％ |
Exterior Dimension | 470﹡300﹡365mm |
Net Weight | 30Kg |
