SN-300C
scienovo
1 Years
OEM Service
| Quantity: | |
|---|---|
Features |
Electrolysis cell using today's most advanced solid polymer electrolyte hydrogen technology, so that the output of hydrogen oxygen content of less than 0.1ppm, it is pure water as the electrolyte to titanium electrode. when connect to the electricity, the cathode produces hydrogen, the anode produces oxygen. Oxygen vent, hydrogen into the gas-water separator and separa from the water, the drying tube fully dry, from the outlet output. The instrument uses a high sensitivity, fuzzy automatic tracking control system, that is, with the production, gas production gas, gas does not gas does not produce gas, to achieve automatic constant pressure, constant current, so that Pressure Stability accuracy range of less than 0.001Mpa, to ensure that the instrument output Hydrogen purity high, stable, safe and sustainable.
Specification |

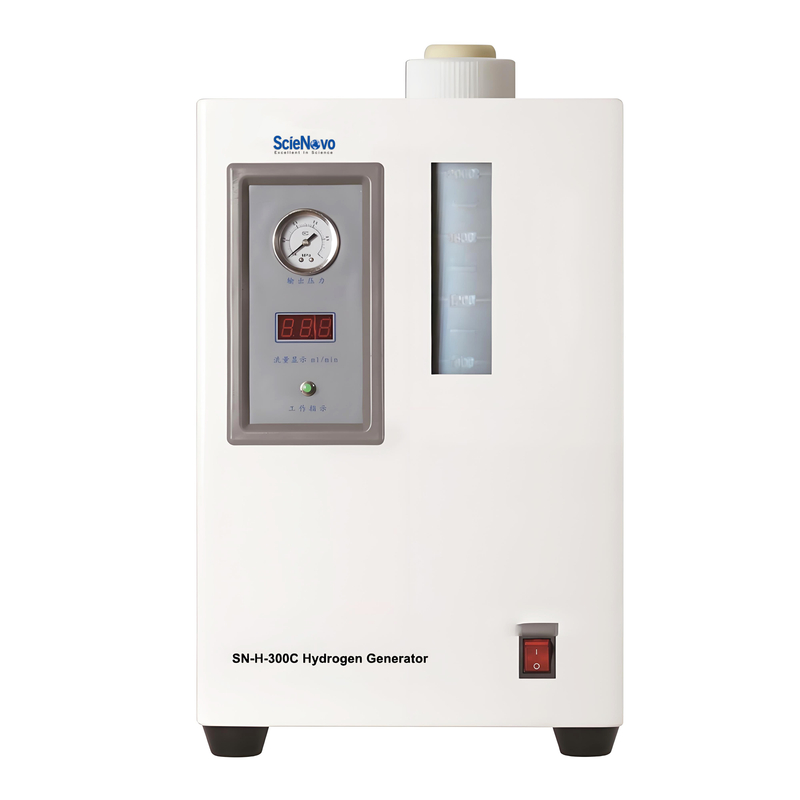

Product Name | Hydrogen Generator |
Model | SN-300C |
Item | Specification |
Hydrogen Purity | ﹥99.999％ |
Output Flow | 0-300ml/min |
Output Pressure | 0-0.4Mpa |
Available Pure Water | Greater than 2MΩ deionized water or secondary distilled water |
Pressure Stability | <0.001Mpa |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 200W |
Environment Condition | Environment Temperature：10-40℃ ；Relative humidity：《85％ |
Exterior Dimension | 350mm×220mm×340mm |
Net Weight | 15Kg |
