SN-5H
scienovo
1 Years
OEM Service
| Quantity: | |
|---|---|
Features |
Intelligent control, the application of a high integration module supply muti-directional intelligent control for the instrument, LCD screen display more intuitive, easy to observe the operation of the instrument, to avoid serious damage caused by overload operation on the equipment.
Easy to operate, the instrument is equipped with automatic water function, start the power switch can produce hydrogen.
Safe and reliable, the instrument has a variety of alarm system: a-level safety line alarm system, b-hydrogen leakage alarm system, cover-voltage alarm system.
All the use of stainless-steel pipe (electrolytic polishing, ultrasonic cleaning), double purifier, four purifications.
A unique anti-back to the liquid device to ensure that the instrument never return to the liquid phenomenon.
Cylinder type electrolytic cell, electrolytic material selection of imported special precious metals, effectively improve the electrolysis efficiency, constant cell temperature, to promote the battery life greatly improved.
Output flow stable, automatic tracking, can be used continuously.
Specification |

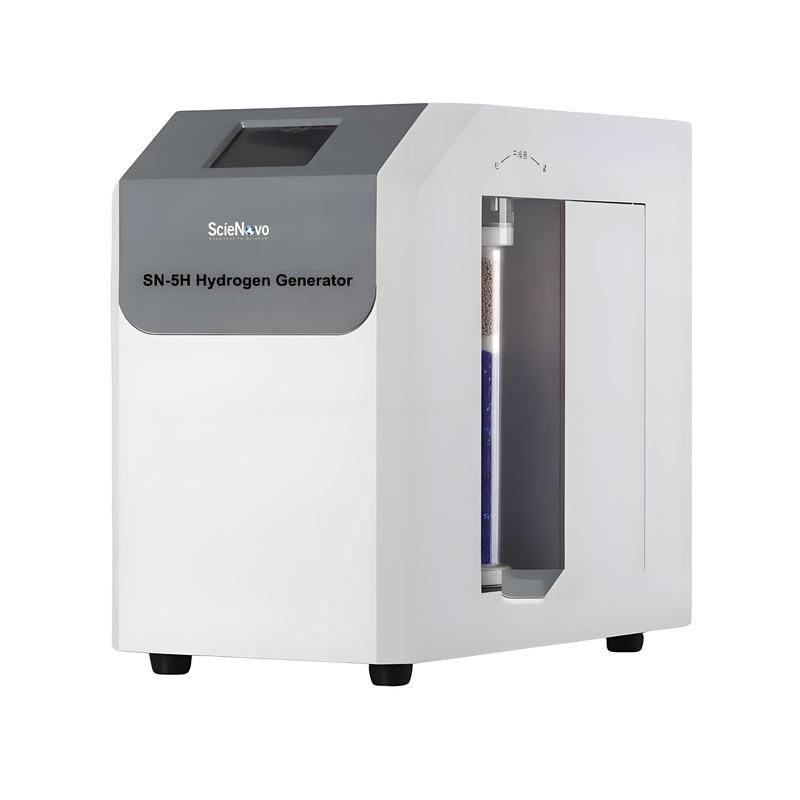

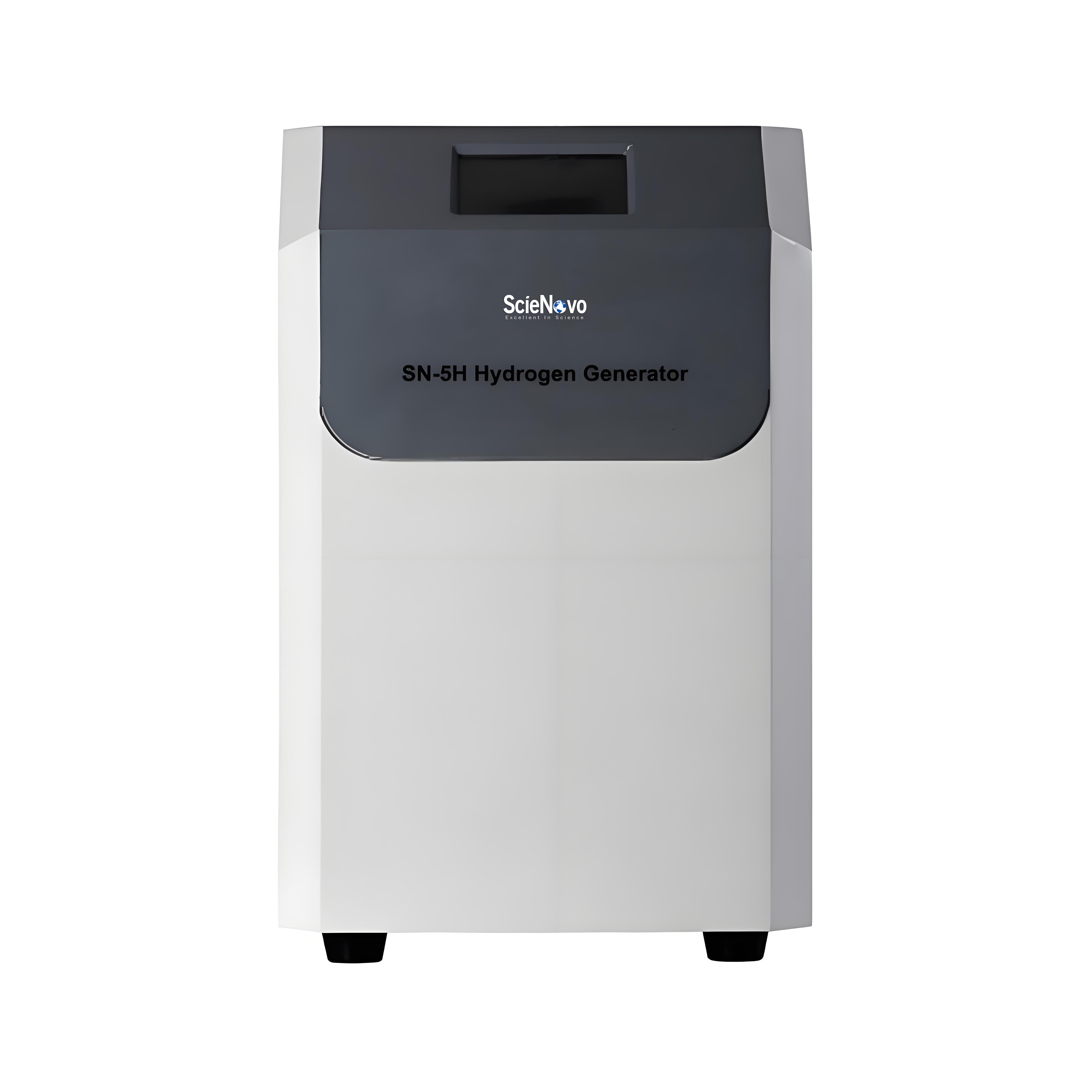

Product Name | Hydrogen Generator |
Model | SN-5H |
Item | Specification |
Hydrogen purity | ﹥99.999％ |
Output flow | 0-500ml/min |
Output pressure | 0-0.4Mpa (Factory setting0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 315W |
Environment condition | Environment Temperature：0-40℃ ；Relative humidity：《85％ |
Exterior Dimension | 350x190x380mm |
Net weight | 8Kg |
Features |
Intelligent control, the application of a high integration module supply muti-directional intelligent control for the instrument, LCD screen display more intuitive, easy to observe the operation of the instrument, to avoid serious damage caused by overload operation on the equipment.
Easy to operate, the instrument is equipped with automatic water function, start the power switch can produce hydrogen.
Safe and reliable, the instrument has a variety of alarm system: a-level safety line alarm system, b-hydrogen leakage alarm system, cover-voltage alarm system.
All the use of stainless-steel pipe (electrolytic polishing, ultrasonic cleaning), double purifier, four purifications.
A unique anti-back to the liquid device to ensure that the instrument never return to the liquid phenomenon.
Cylinder type electrolytic cell, electrolytic material selection of imported special precious metals, effectively improve the electrolysis efficiency, constant cell temperature, to promote the battery life greatly improved.
Output flow stable, automatic tracking, can be used continuously.
Specification |
Product Name | Hydrogen Generator |
Model | SN-5H |
Item | Specification |
Hydrogen purity | ﹥99.999％ |
Output flow | 0-500ml/min |
Output pressure | 0-0.4Mpa (Factory setting0.4Mpa) |
Voltage | 220V±10％；50HZ±5％ |
Max Power | 315W |
Environment condition | Environment Temperature：0-40℃ ；Relative humidity：《85％ |
Exterior Dimension | 350x190x380mm |
Net weight | 8Kg |
