SN-EU2800DS
Scienovo
CE
2 Years
OEM
| Quantity: | |
|---|---|

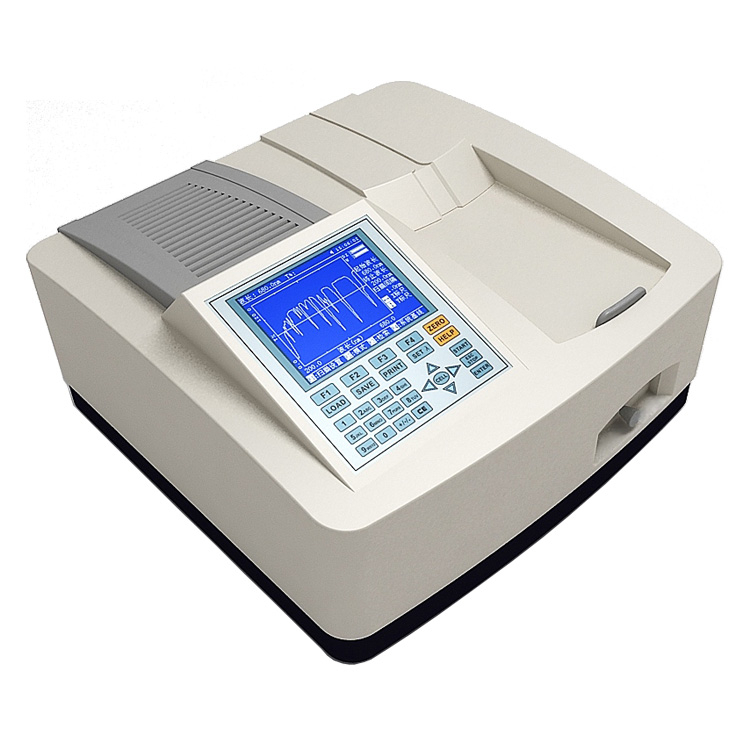

SN-EU2800D spectrophotometer are advanced double beam optical system. Double beam optical structure can inhibit the drift, Suitable for long time test. SN-EU2800D with 1.8nm fixed bandwidth, SN-EU2800DS with optional bandwidth. They are suitable for research, biochemical and pharmaceutical lab applications.
Function |
Photometric
Quantitative (Standard Curve)
WL Scan (Spectrum Scan)
Time Scan (Kinetics)
DNA/Protein Test
Multi-WL Test
System Utility
Feature |
Double beams ensure low drift, low noise and Low stray light
High speed MCU, high precision AD, large storage capacity
Large LCD display (320*240 Dots)
1.0nm or variable Bandwidth meet Pharmacopoeia
Data and Curve can be stored in real-time
Online software upgrade capability
Lamps can be turned on/off individually
Easy to change Pri-aligned lamps
Reinforced baseboard and bracket assure durability
Specification |
Model | SN-EU2800D | SN-EU2800DS |
Wavelength Range | 190-1100nm | |
Spectral Bandwidth | 1.8nm | 0.5/1/2/4/5nm Variable |
Optical System | Double Beam, Blazed Holographic Grating (1200 lines/mm) | |
Wavelength Accuracy | ±0.3nm | |
Wavelength Repeatability | ≤0.2nm | |
Wavelength Setting | Auto, Resolution 0.1nm | |
Photometric Range | 0~200%T, -0.3~3A, 0~9999C | |
Photometric Accuracy | ±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T) | |
Photometric Repeatability | ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T) | |
Stray Light | ≤0.05%T(220/360nm) | |
Scan Speed | High, Medium, Low. Max.2000nm/minute | |
Baseline Flatness | ±0.001A | |
Stability | ±0.001A/h (500nm,0A) | |
Noise | ≤0.2%T/3min (250/500nm,0%T); ≤0.3%T/3min (250/500nm,100%T) | |
Sample Compartment | Accommodate 5-100mm Pathlength Cuvette | |
Detector | Silicon Photodiode | |
Lamps | Tungsten Lamp & Deuterium Lamp (Pre-aligned) | |
Display | Graphic LCD (320*240 Dots) | |
Keypad | 30-key Alphanumeric Membrance Keypad | |
Output Port | USB Port & RS232 Port | |
Printer | Mini Serial Printer; PC Printer | |
PC Software | PC Scanning Software | |
Power Requirements | AC 90-250V，50/60Hz | |
Dimension | 545x468x245mm | 635x515x255mm |
Weight | 18kg | 25kg |
