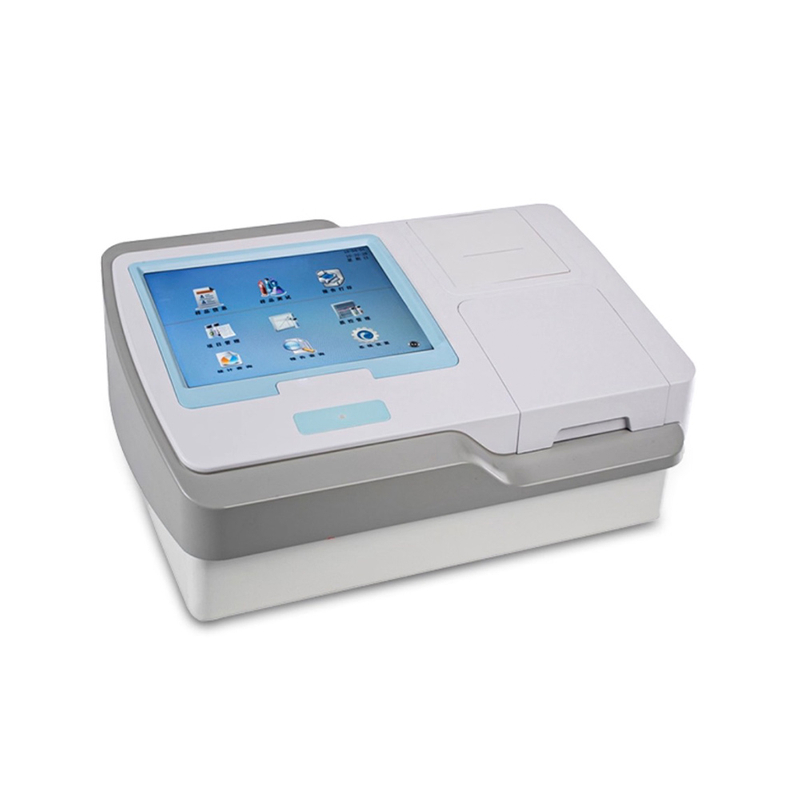

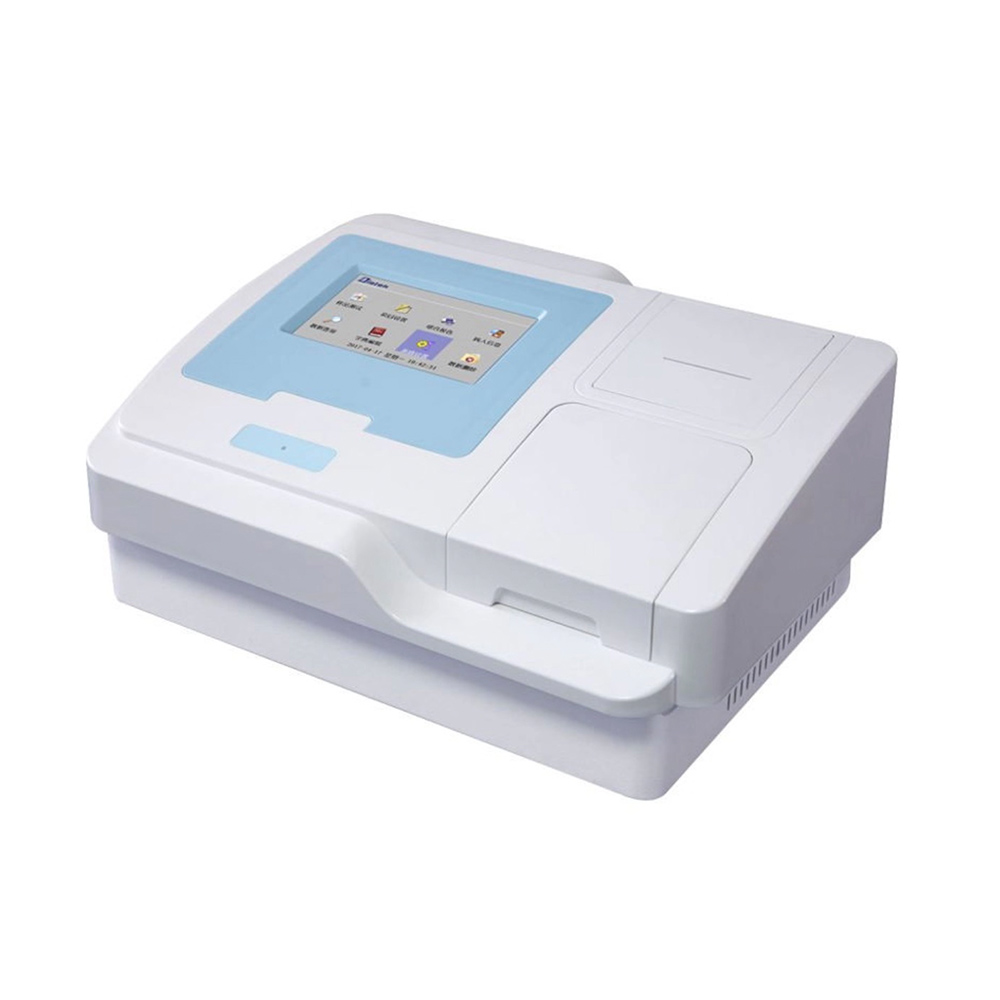

EMR-96B
Scienovo
| Quantity: | |
|---|---|
Features
10.4-inch color LCD touchscreen input, large display, and fast operation.
Full-screen display of a 96-well visual layout interface.
Using the world's most advanced LED cold light source optical path, it is maintenance-free and has an extremely long lifespan.
Automatically stores standard curves, allowing users to modify them.
Embedded system allows operation, storage, and printing without an external computer.
Automatic zeroing in both single- and dual-wavelength testing modes.
Optional external PC software with network support, aligning with the trend of digitalization and customizable upload capabilities.
Massive data storage, capable of storing at least 10 million test results and 500 programming projects, with support for data backup, restoration, and merging.
Performs 24 different tests on the same plate, each distinguishable by display.
Also allows for qualitative and quantitative testing on the same plate.
Template functionality allows for fixed testing tasks, greatly simplifying operator workload.
Intelligent calculation of test results ensures accurate results Accurate and effective results, with automatic alarms.
New Windows color graphical interface, fully Chinese operating system, mouse and keyboard support, and multiple input methods.
Intelligent light source on/off, extending life.
Provides multiple printing methods and reports in various Chinese formats, with customizable reports.
Panel layout and save/import functions significantly improve testing efficiency for common projects.
Selectable calculation methods include absorbance mode, cut-off qualitative calculation, single-point calibration, broken line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, log-logit, power regression, and four-parameter regression.
Dedicated system maintenance menu automatically determines the instrument's status and prints relevant data.
Specification
Model | EMR-96B | EMR-96A |
Display Mode | 10.4-inch color LCD touchscreen | 7-inch color LCD touchscreen |
Interface | DVI port, VGA port, network port, USB port, audio jack, RS232 serial port | USB (A) port, USB (B) port, serial port, parallel port |
Data Storage | 1 million boards (96 holes) 500 programming projects | 200,000 test data, more than 500 test items (expandable) |
Input Method | Touchscreen input, optional mouse and keyboard | |
Light Source Type | LED cold light source | |
Wavelength Range | 400-800nm | |
Filter Configuration | 10 filter positions, standard 405nm, 450nm, 492nm, and 630nm, with 6 custom wavelengths optional | |
Absorbance Range | 0.000-4.000A | |
Number Of Optical Channels | 8-channel optical detection, with an independent reference channel | |
Indication Stability | ≤±0.002A or <0.5%T/10min | |
Indication Error (Accuracy) | ≤±0.005A or ±0.2%T | |
Repeatability | ≤0.2% or ≤0.2%T | |
Sensitivity | ≥0.01 (L/mg) | |
Channel Difference | ≤0.01A | |
Wavelength Indication Error | ±1nm | |
Half Width | ≤8nm | |
Peak Transmittance | ≥35% | |
Resolution | 0.001A (display), 0.0001A (internal calculation) | |
Reading Speed | Single wavelength ≤3 seconds/96-well, dual wavelength ≤6 seconds/96-well | |
Shake Plate Function | Adjustable speed and time | |
Light Source Type | Halogen tungsten lamp | |
Strip Type | Standard 96-well or other ELISA plates and strips | |
Applicable Well Type | Flat-bottom, U-shaped, and V-shaped | |
Printing | Built-in thermal printer, external printer compatible | |
Operating Environment | Temperature 5-40°C; Humidity 15%-80% | |
Power Supply Voltage | 220V ±10%, 50/60Hz | |
Dimensions | 471mm × 351mm × 211mm (L × W × H) | |
Weight | 11.6kg | |
