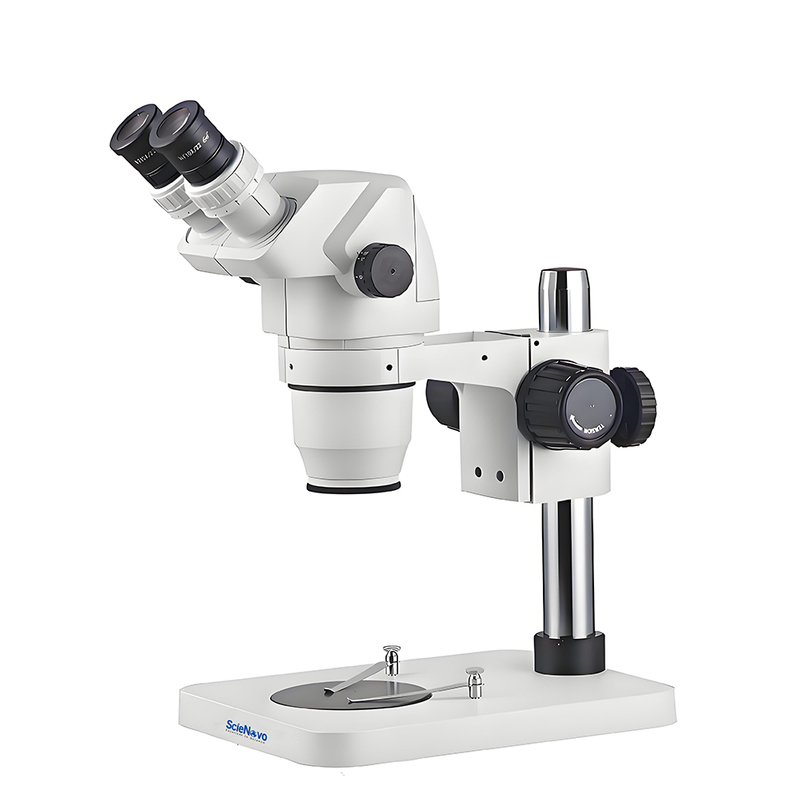

SN-XLT-23B1 Stereo Binocular Microscope

Head

Binocular Head, 45° Inclined, 360°Rotatable, Interpupillary Adjustment 54-75mm

Eyepiece

WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable

Zoom Range

0.67x~4.5x

Zoom Ratio

01:06.7

Magnification

6.7~45x, Up To 2x-270x With Optional Eyepieces & Auxiliary Objectives

Working Distance

105mm, Up To 26~287mm With Auxiliary Objectives

Field Of View

0.9-109.5mm (Detail See Optical Data Sheet)

Focusing

Pole Stand Coarse Focusing Range 50mm, Tension Adjustable
Track Stand Coarse Focusing Range 74mm, Tension Adjustable

Stand

35 Kinds Stand Optional, Details See A54.3630
Choose Model According To Cata. No. Like:
A23.3667-B1 Means Binocular Head With B1 Stand
A23.3667-B1TMeans Trinocular Head With B1 Stand

Zoom Lens

0.67x~4.5x

Auxiliary Lens

0.3x

0.5x

0.7x

0.75x

1.0x(Standard)

1.5x

2.0x

Working Distance

287mm

177mm

120mm

117mm

105mm

47mm

26mm

WF10x/22mm

Magnification

2.0-13.5x

3.4-22.5x

4.7x-31.5x

5.0-33.8x

6.7-45.0x

10.1-67.5x

13.4-90.0x

View Field(mm)

109.5-16.3

65.7-9.8

46.9-6.9

43.8-6.5

32.8-4.9

21.9-3.3

16.4-2.4

WF15x/16mm

Magnification

3.0-20.3x

5.0-33.8x

7x-47.2x

7.5-50.6x

10.1-67.5x

15.1-101.3x

20.1-135x

View Field(mm)

79.6-11.9

47.8-7.1

34.1-5.1

31.8-4.7

23.9-3.6

15.9-2.4

11.9-1.8

WF20x/12mm

Magnification

4.0-27.0x

6.7-45.0x

9.3x-63x

10.1-67.5x

13.4-90.0x

20.1-135.0x

26.8-180x

View Field(mm)

59.7-8.9

35.8-5.3

25.6-3.8

23.9-3.6

17.9-2.7

11.9-1.8

9-1.3

WF25x/9mm

Magnification

5.0-33.8x

8.4-56.3x

11.7x-78.7x

12.6-84.4x

16.8-112.5x

25.1-168.8x

33.5-225x

View Field(mm)

44.8-6.7

26.9-4.0

19.2-2.8

17.9-2.7

13.4-2.0

9.0-1.3

6.7-1.0

WF30x/8mm

Magnification

6.0-40.5x

10.2-67.5x

14.1x-94.5x

15.0-101.4x

20.1-135x

30.3-202.5x

40.2-270x

View Field(mm)

37.3-5.6

23.8-3.6

16-2.25

14.1-2.25

11.9-1.8

7.9-1.2

6.0-0.9

Binocular Head + WF10x/20mm

A53.3667-B

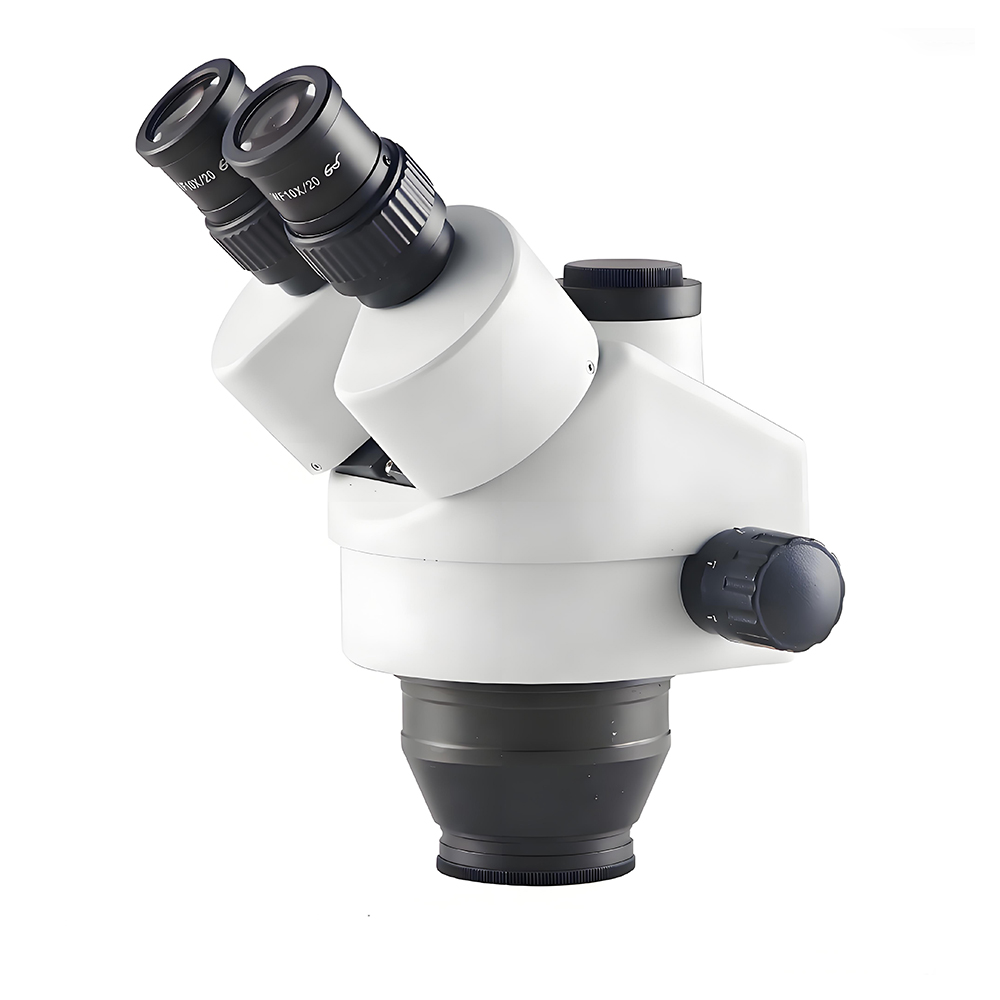

Trinocular Head + WF10x/20mm

A53.3667-T

WF10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm

A51.3622-1022

WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm

A51.3622-1516

WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm

A51.3622-2012

WF25x/9mm, High Eyepoint, Diopter Adjustable, Dia.30mm

A51.3622-2509

WF30x/8mm, High Eyepoint, Diopter Adjustable, Dia.30mm

A51.3622-3008

0.3x, W.D. 287mm

A52.3622-03

0.5x, W.D. 120mm

A52.3622-05

0.7x, W.D. 117mm

A52.3622-07

0.75x, W.D. 116mm

A52.3622-75

1.5x, W.D. 47mm

A52.3622-15

2.0x, W.D. 26mm

A52.3622-20

Eyepiece Adapter Focus Adjustable

A55.3623-E

1.0x, Focus Adjustable

A55.3623-10

0.50x, Focus Adjustable, For 1/2"CCD

A55.3623-05

0.35x, Focus Adjustable, For 1/3"CCD

A55.3623-35
